Sistema de placas para mano

Hand Locking Plate System

Fabricante: Siora Surgicals Pvt. Ltd.
Fuente consultada: 2026-09-20 · Ver página original ↗

Prepara tu consulta

Referencia o rango publicadoTi.120.002 – Ti.120.007 · Cat. No. (Titanium) · Size: 2 Holes – 7 HolesTi.120.012 – Ti.120.017 · Cat. No. (Titanium) · Size: 2 Holes – 7 HolesTi.120.022 – Ti.120.027 · Cat. No. (Titanium) · Size: 2 Holes – 7 HolesTi.120.032 – Ti.120.037 · Cat. No. (Titanium) · Size: 2 Holes – 7 HolesTi.120.103 – Ti.120.112 · Cat No. · Holes: 3 – 12 · Length (mm): 21 – 84Ti.120.043 – Ti.120.052 · Cat No. · Holes: 3 – 12 · Length (mm): 24 – 87Ti.119.406 – Ti.119.430 · Cat No. · Length (mm): 24 – 87Ti.119.006 – Ti.119.030 · Cat No. · Length (mm): 6 – 30Ti.119.506 – Ti.119.530 · Cat No. · Length (mm): 6 – 30Ti.119.306 – Ti.119.330 · Cat No. · Length (mm): 6 – 30

Ti.120.002 – Ti.120.007 · Cat. No. (Titanium) · Size: 2 Holes – 7 Holes

La fuente publica un rango. La referencia individual y la medida se precisan con el equipo comercial.

Cantidad solicitadaConsultar esta selección ↗Continúa con tu institución y destino. Esta selección no reserva inventario.

Fotografías y tablas técnicas

Se conserva la denominación, las unidades y los rangos publicados por el fabricante.

1.5/2.0 MM LCP-Y-Plate 3 Holes Head1 / 12

1.5/2.0 MM LCP-Y-Plate 3 Holes Head

Cat. No. (Titanium)	Size
Ti.120.002 – Ti.120.007	2 Holes – 7 Holes

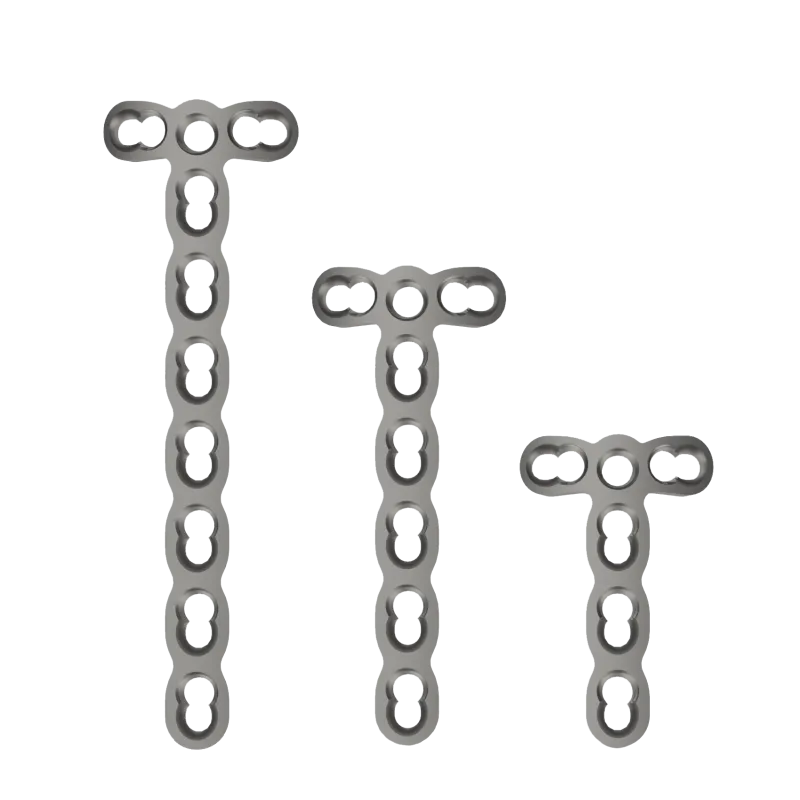

1.5/2.0 MM LCP-T-Plate 3 Holes Head2 / 12

1.5/2.0 MM LCP-T-Plate 3 Holes Head

Cat. No. (Titanium)	Size
Ti.120.012 – Ti.120.017	2 Holes – 7 Holes

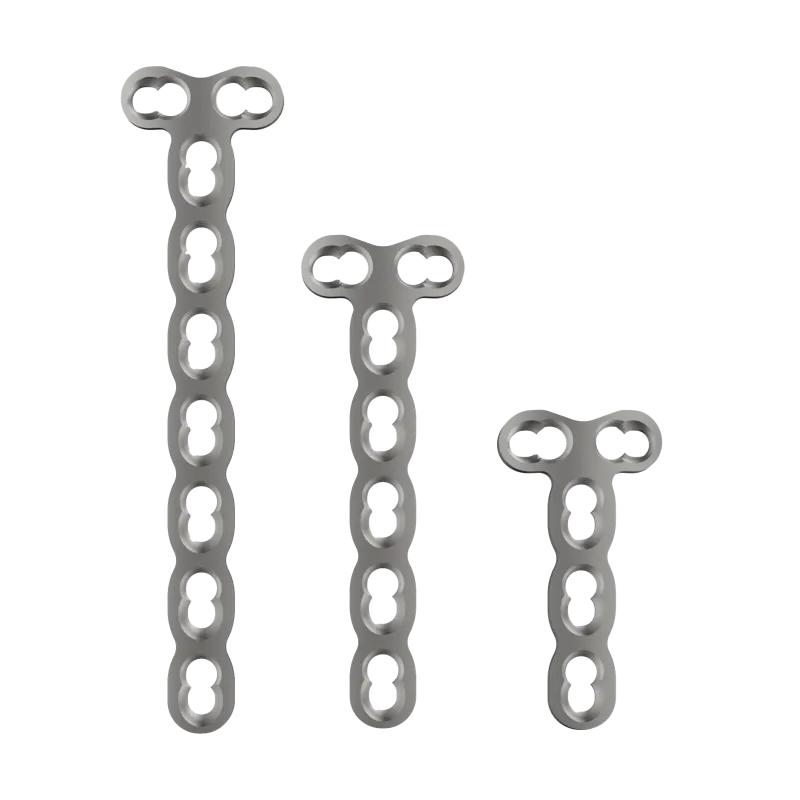

1.5/2.0 MM LCP T-Plate 2 Holes Head3 / 12

1.5/2.0 MM LCP T-Plate 2 Holes Head

Cat. No. (Titanium)	Size
Ti.120.022 – Ti.120.027	2 Holes – 7 Holes

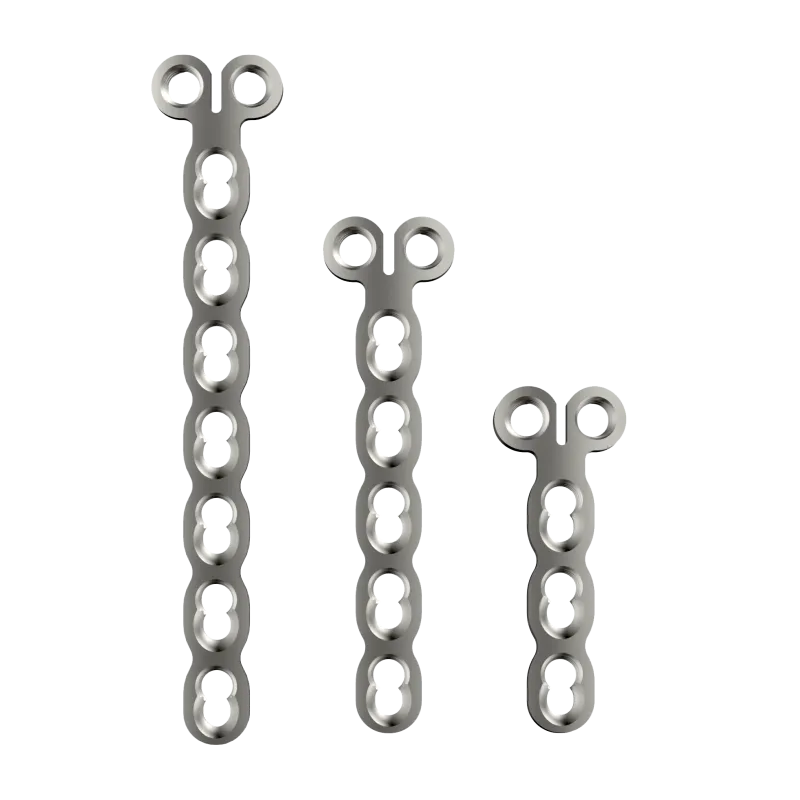

1.5/2.0 MM LCP Condylar Plate4 / 12

1.5/2.0 MM LCP Condylar Plate

Cat. No. (Titanium)	Size
Ti.120.032 – Ti.120.037	2 Holes – 7 Holes

1.5/2.0mm LCP Adaption Plate5 / 12

1.5/2.0mm LCP Adaption Plate

Cat No.	Holes	Length (mm)
Ti.120.103 – Ti.120.112	3 – 12	21 – 84

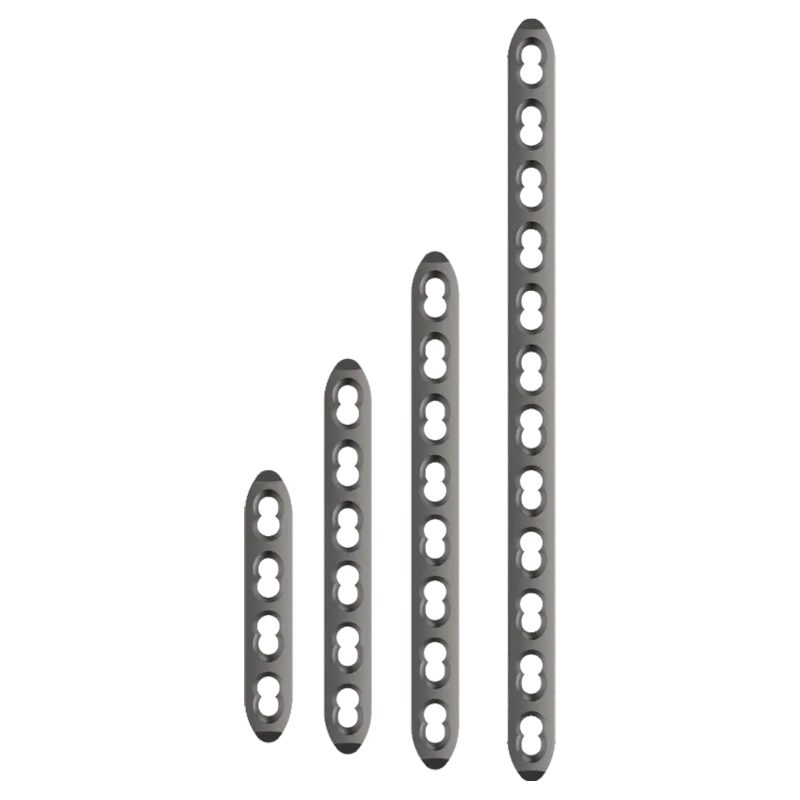

1.5/2.0 MM LCP Straight Plate6 / 12

1.5/2.0 MM LCP Straight Plate

Cat No.	Holes	Length (mm)
Ti.120.043 – Ti.120.052	3 – 12	24 – 87

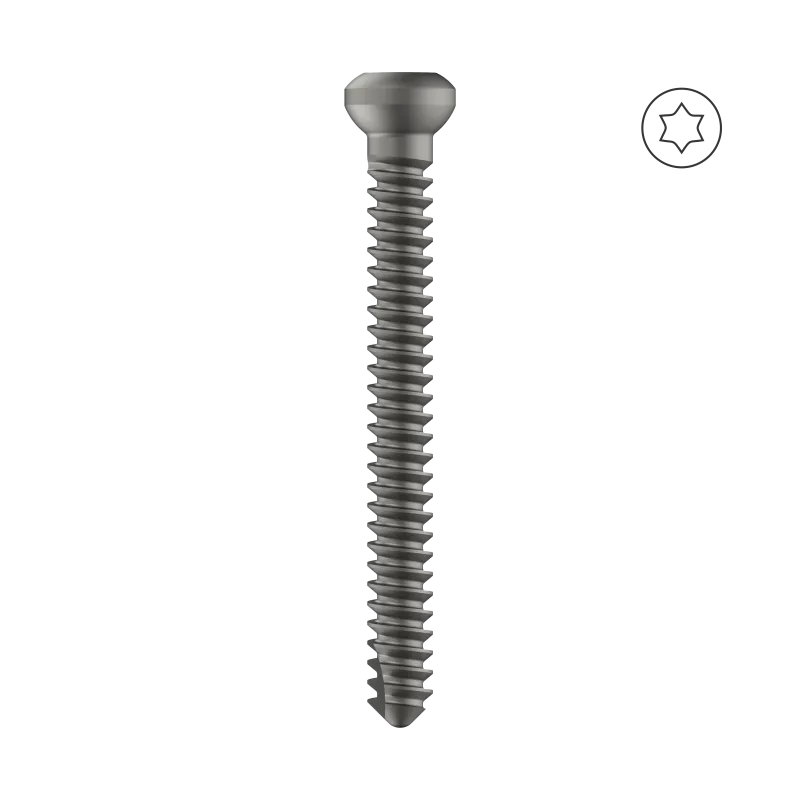

Cortical Screw Self Tapping (Star Drive) 1.5mm Dia.7 / 12

Cortical Screw Self Tapping (Star Drive) 1.5mm Dia.

Cat No.	Length (mm)
Ti.119.406 – Ti.119.430	24 – 87

Cortical Screw Self Tapping (Star Drive) 2.0mm Dia.8 / 12

Cortical Screw Self Tapping (Star Drive) 2.0mm Dia.

Cat No.	Length (mm)
Ti.119.006 – Ti.119.030	6 – 30

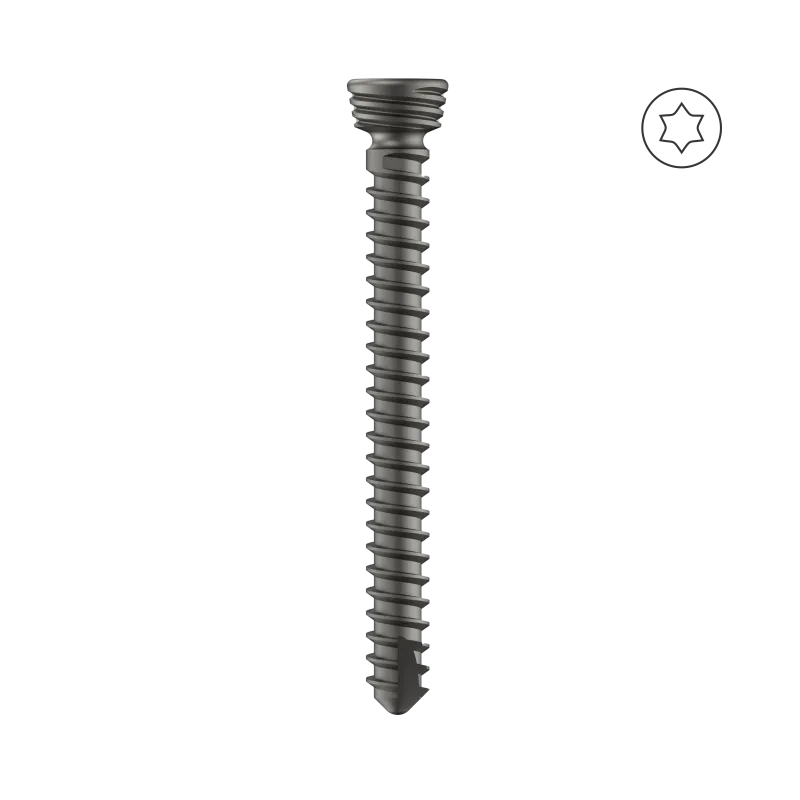

Locking Head Screw – Self Tapping (Star Drive) 1.5mm Dia.9 / 12

Locking Head Screw – Self Tapping (Star Drive) 1.5mm Dia.

Cat No.	Length (mm)
Ti.119.506 – Ti.119.530	6 – 30

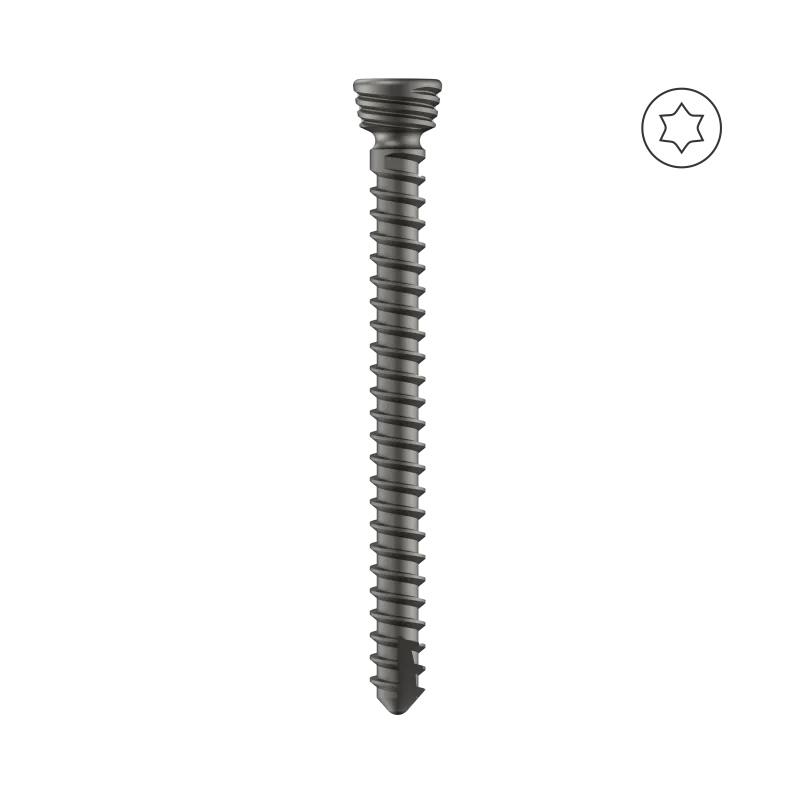

Locking Head Screw – Self Tapping (Star Drive) 2.0mm Dia.10 / 12

Locking Head Screw – Self Tapping (Star Drive) 2.0mm Dia.

Cat No.	Length (mm)
Ti.119.306 – Ti.119.330	6 – 30

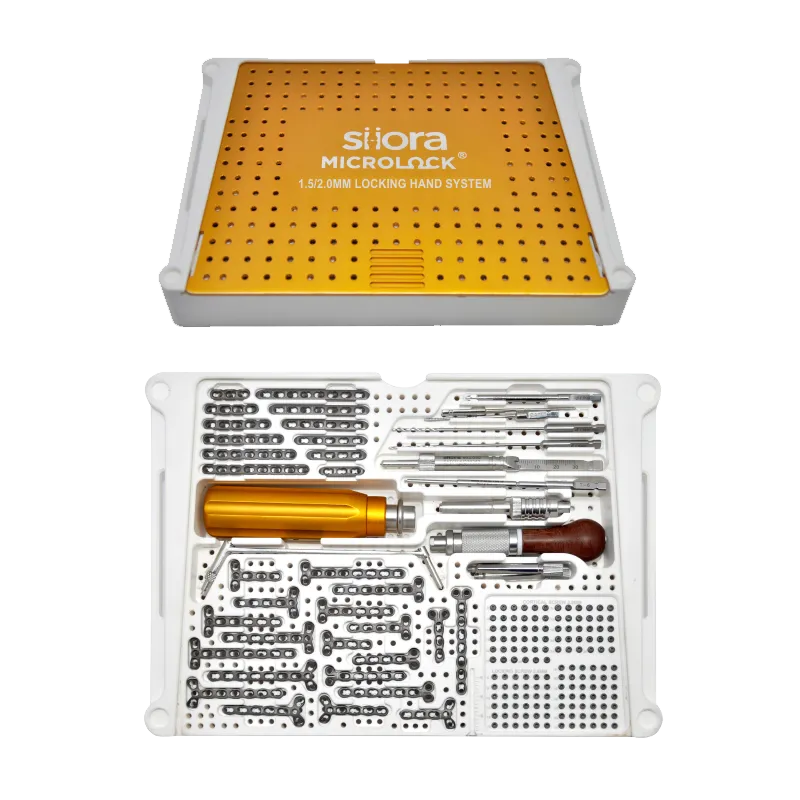

1.5mm Locking Plates – Implants & Instruments Set11 / 12

1.5mm Locking Plates – Implants & Instruments Set

Cat No. IS.191	Description	Units
TI.120.003	1.5/2.0 LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 3 HOLES	1
TI.120.004	1.5/2.0MM LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 4 HOLES	1
TI.120.005	1.5/2.0MM LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 5 HOLES	1
TI.120.006	1.5/2.0MM LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 6 HOLES	1
TI.120.007	1.5/2.0MM LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 7 HOLES	1
TI.120.013	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 3 HOLES	1
TI.120.014	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 4 HOLES	1
TI.120.015	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 5 HOLES	1
TI.120.016	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 6 HOLES	1
TI.120.017	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 7 HOLES	1
TI.120.023	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 3 HOLES	1
TI.120.024	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 4 HOLES	1
TI.120.025	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 5 HOLES	1
TI.120.026	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 6 HOLES	1
TI.120.027	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 7 HOLES	1
TI.120.033	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 3 HOLES	1
TI.120.034	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 4 HOLES	1
TI.120.035	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 5 HOLES	1
TI.120.036	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 6 HOLES	1
TI.120.037	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 7 HOLES	1
TI.120.043	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 3 HOLES	1
TI.120.044	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 4 HOLES	1
TI.120.045	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 5 HOLES	1
TI.120.046	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 6 HOLES	1
TI.120.047	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 7 HOLES	1
TI.120.048	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 8 HOLES	1
TI.120.103	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 3 HOLES	1
TI.120.104	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 4 HOLES	1
TI.120.105	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 5 HOLES	1
TI.120.106	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 6 HOLES	1
TI.120.107	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 7 HOLES	1
TI.120.108	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 8 HOLES	1
TI.119.406	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 6MM LENGTH	6
TI.119.408	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 8MM LENGTH	6
TI.119.410	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 10MM LENGTH	6
TI.119.412	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 12MM LENGTH	6
TI.119.414	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 14MM LENGTH	6
TI.119.416	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 16MM LENGTH	6
TI.119.418	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 18MM LENGTH	6
TI.119.420	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 20MM LENGTH	6
TI.119.422	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 22MM LENGTH	6
TI.119.424	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 24MM LENGTH	3
TI.119.426	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 26MM LENGTH	3
TI.119.428	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 28MM LENGTH	3
TI.119.430	1.5MM CORTICAL SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 30MM LENGTH	3
TI.119.506	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 6MM LENGTH	6
TI.119.508	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 8MM LENGTH	6
TI.119.510	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 10MM LENGTH	6
TI.119.512	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 12MM LENGTH	6
TI.119.514	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 14MM LENGTH	6
TI.119.516	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 16MM LENGTH	6
TI.119.518	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 18MM LENGTH	6
TI.119.520	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 20MM LENGTH	6
TI.119.522	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 22MM LENGTH	6
TI.119.524	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 24MM LENGTH	6
TI.119.526	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 26MM LENGTH	6
TI.119.528	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 28MM LENGTH	6
TI.119.530	1.5MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 30MM LENGTH	6
402.025	COUNTER SINK Q.C. END FOR 1.5/2.0MM SCREW LENGTH 70MM	1
402.030	DEPTH GAUGE FOR 1.5/2.0MM SCREW LENGTH 115MM	1
402.050	LCP Drill Sleeve For 1.1MM Drill Bit	2
402.055	1.1MM DRILL BIT Q.C. END 110MM	2
402.060	1.1/1.5MM UNIVERSAL DRILL GUIDE	1
402.065	1.5MM BONE TAP Q.C. END FOR LOCKING SCREW	1
402.070	1.5MM BONE TAP Q.C. END FOR CORTICAL SCREW	1
XP.402.005	TORQUE LIMITING SCREW DRIVER – STAR DRIVE FOR 1.5/2.0MM LOCKING HEAD SCREW	1
XP.402.006	SCREW HOLDING SLEEVE	1
XP.402.015	HANDLE WITH QUICK COUPLING	1
XP.402.020	SCREW DRIVER Q.C. END STAR DRIVE FOR 1.5/2.0MM SCREW, LENGTH 105MM	1
402.101	IMPLANT & INSTRUMENT BOX FOR 1.5/2.0MM LOCKING SYSTEM (MEDICAL GRADE PLASTIC)	1

2.0mm Locking Plates – Implants & Instruments Set12 / 12

2.0mm Locking Plates – Implants & Instruments Set

Cat No. IS.193	2.0mm Locking Plates – Implants & Instruments Set	Units
TI.120.003	1.5/2.0 LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 3 HOLES	1
TI.120.004	1.5/2.0MM LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 4 HOLES	1
TI.120.005	1.5/2.0MM LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 5 HOLES	1
TI.120.006	1.5/2.0MM LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 6 HOLES	1
TI.120.007	1.5/2.0MM LCP – Y- PLATE 3 HOLES HEAD – TITANIUM, SIZE : 7 HOLES	1
TI.120.013	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 3 HOLES	1
TI.120.014	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 4 HOLES	1
TI.120.015	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 5 HOLES	1
TI.120.016	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 6 HOLES	1
TI.120.017	1.5/2.0MM LCP – T – PLATE 3 HOLES HEAD – TITANIUM, SIZE : 7 HOLES	1
TI.120.023	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 3 HOLES	1
TI.120.024	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 4 HOLES	1
TI.120.025	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 5 HOLES	1
TI.120.026	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 6 HOLES	1
TI.120.027	1.5/2.0MM LCP – T – PLATE 2 HOLES HEAD – TITANIUM, SIZE : 7 HOLES	1
TI.120.033	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 3 HOLES	1
TI.120.034	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 4 HOLES	1
TI.120.035	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 5 HOLES	1
TI.120.036	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 6 HOLES	1
TI.120.037	1.5/2.0MM LCP CONDYLAR PLATE – TITANIUM, SIZE : 7 HOLES	1
TI.120.043	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 3 HOLES	1
TI.120.044	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 4 HOLES	1
TI.120.045	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 5 HOLES	1
TI.120.046	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 6 HOLES	1
TI.120.047	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 7 HOLES	1
TI.120.048	1.5/2.0MM LCP STRAIGHT PLATE – TITANIUM, SIZE : 8 HOLES	1
TI.120.103	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 3 HOLES	1
TI.120.104	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 4 HOLES	1
TI.120.105	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 5 HOLES	1
TI.120.106	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 6 HOLES	1
TI.120.107	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 7 HOLES	1
TI.120.108	1.5/2.0MM LCP ADAPTION PLATE – TITANIUM, SIZE : 8 HOLES	1
TI.119.006	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 6MM LENGTH	6
TI.119.008	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 8MM LENGTH	6
TI.119.010	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 10MM LENGTH	6
TI.119.012	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 12MM LENGTH	6
TI.119.014	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 14MM LENGTH	6
TI.119.016	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 16MM LENGTH	6
TI.119.018	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 18MM LENGTH	6
TI.119.020	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 20MM LENGTH	6
TI.119.022	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 22MM LENGTH	6
TI.119.024	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 24MM LENGTH	3
TI.119.026	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 26MM LENGTH	3
TI.119.028	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 28MM LENGTH	3
TI.119.030	2.0MM CORTICAL SCREW- SELF TAPPING- STAR DRIVE – TITANIUM, 30MM LENGTH	3
TI.119.306	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 6MM LENGTH	6
TI.119.308	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 8MM LENGTH	6
TI.119.310	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 10MM LENGTH	6
TI.119.312	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 12MM LENGTH	6
TI.119.314	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 14MM LENGTH	6
TI.119.316	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 16MM LENGTH	6
TI.119.318	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 18MM LENGTH	6
TI.119.320	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 20MM LENGTH	6
TI.119.322	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 22MM LENGTH	6
TI.119.324	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 24MM LENGTH	6
TI.119.326	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 26MM LENGTH	6
TI.119.328	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 28MM LENGTH	6
TI.119.330	2.0MM LOCKING HEAD SCREW – SELF TAPPING – STAR DRIVE – TITANIUM, 30MM LENGTH	6
402.010	LCP Drill Sleeve 1.5mm Drill bit	2
402.025	COUNTER SINK Q.C. END FOR 1.5/2.0MM SCREW LENGTH 70MM	1
402.030	DEPTH GAUGE FOR 1.5/2.0MM SCREW LENGTH 115MM	1
402.040	1.5/2.0MM UNIVERSAL DRILL GUIDE	1
402.045	2.0MM BONE TAP Q.C. END FOR LOCKING SCREW	1
402.046	2.0MM BONE TAP Q.C. END FOR CORTICAL SCREW	1
XP.402.005	TORQUE LIMITING SCREW DRIVER – STAR DRIVE FOR 1.5/2.0MM LOCKING HEAD SCREW	1
XP.402.006	SCREW HOLDING SLEEVE	1
XP.402.015	HANDLE WITH QUICK COUPLING	1
XP.402.020	SCREW DRIVER Q.C. END STAR DRIVE FOR 1.5/2.0MM SCREW, LENGTH 105MM	1
XP.402.035	1.5MM DRILL BIT Q.C. END 110MM	2
402.101	IMPLANT & INSTRUMENT BOX FOR 1.5/2.0MM LOCKING SYSTEM (MEDICAL GRADE PLASTIC)	1

Las fotografías y los datos corresponden al catálogo de Siora. Disponibilidad, documentación sanitaria, precio y condiciones de suministro se confirman con Kallos para cada destino. Los rangos no se descomponen en referencias individuales.
