Sistema maxilofacial MID 1,0 mm

Mid 1.0mm Maxillofacial Implants System

Fabricante: Siora Surgicals Pvt. Ltd.
Fuente consultada: 2026-09-20 · Ver página original ↗

Prepara tu consulta

Referencia o rango publicadoTi.850.210 – Ti.850.212 · Cat No. · Thickness (mm): 1.0 · Holes: 4 · Length (mm): 24 – 29Ti.850.201 – Ti.850.204 · Cat No. · Thickness (mm): 1.0 · Holes: 6 -16 · Length (mm): 35 – 95Ti.850.220 – Ti.850.222 · Cat No. · Thickness (mm): 1.0 · Holes: 8 -16 · Length (mm): 25 – 51Ti.850.230 – Ti.850.231 · Cat No. · Thickness (mm): 1.0 · Holes: 4 · Length (mm): 20 – 24Ti.850.235 – Ti.850.237 · Cat No. · Thickness (mm): 1.0 · Holes: 4 – 7 · Length (mm): 19 – 31Ti.850.240 · Cat No. · Thickness: 1.0mm · Holes: 4 · Length: 17 mmTi.850.245 – Ti.850.246 · Cat No. · Thickness (mm): 1.0 · Holes: 5 – 7 · Length (mm): 19 – 31Ti.850.250 · Cat No. · Thickness: 1.0mm · Holes: 6 · Length: 23 mmTi.850.251 – Ti.850.252 · Cat No. · Thickness (mm): 1.0 · Holes: 6 – 7 · Length (mm): 30 – 36Ti.850.255 · Cat No. · Thickness: 1.0mm · Holes: 4 · Length: 24 mmTi.850.260 · Cat No. · Thickness: 1.0mm · Holes: 7 · Length: 40 mmTi.850.265 – Ti.850.266 · Cat No. · Thickness (mm): 1.0 · Holes: 6 – 8 · Length (mm): 36 – 46Ti.850.270 · Cat No. · Thickness: 1.0mm · Holes: 4 · Length: 29 mm LeftTi.850.271 · Cat No. · Thickness: 1.0mm · Holes: 4 · Length: 29 mm RightTi.126.105 – Ti.126.113 · Cat No. · Length (mm): 5.5 – 13Ti.126.205 – Ti.126.213 · Cat No. · Length (mm): 5.5 – 13Ti.126.305 – Ti.126.311 · Cat No. · Length (mm): 5 – 11Ti.126.406 – Ti.126.414 · Cat No. · Length (mm): 6 – 14Ti.126.506 – Ti.126.514 · Cat No. · Length (mm): 6 – 14

Ti.850.210 – Ti.850.212 · Cat No. · Thickness (mm): 1.0 · Holes: 4 · Length (mm): 24 – 29

La fuente publica un rango. La referencia individual y la medida se precisan con el equipo comercial.

Cantidad solicitadaConsultar esta selección ↗Continúa con tu institución y destino. Esta selección no reserva inventario.

Fotografías y tablas técnicas

Se conserva la denominación, las unidades y los rangos publicados por el fabricante.

CMF – Locking Straight Plate1 / 19

CMF – Locking Straight Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.210 – Ti.850.212	1.0	4	24 – 29

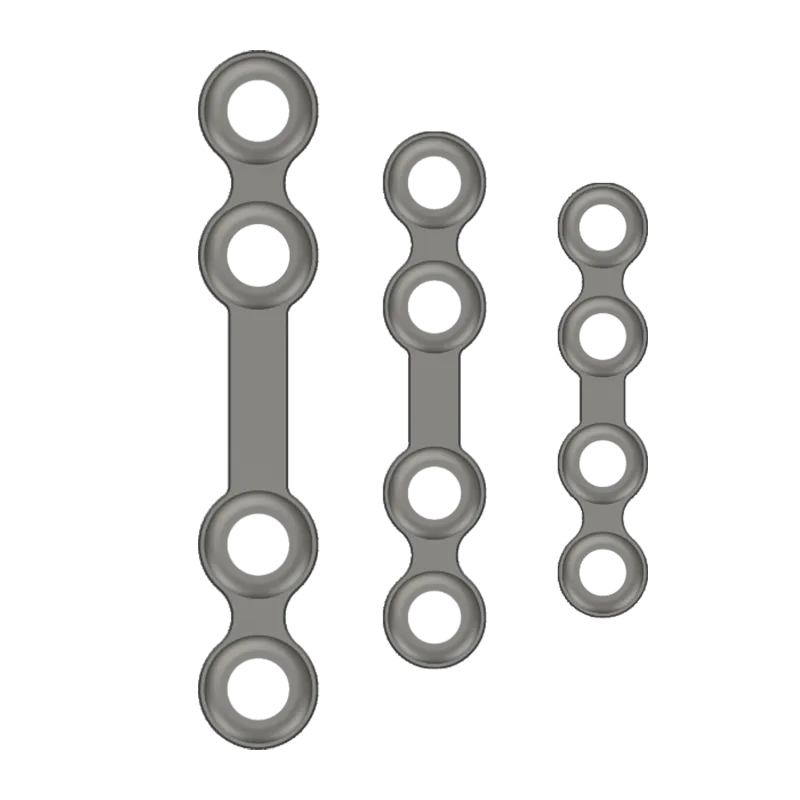

CMF – Locking Straight Bridge Plate2 / 19

CMF – Locking Straight Bridge Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.201 – Ti.850.204	1.0	6 -16	35 – 95

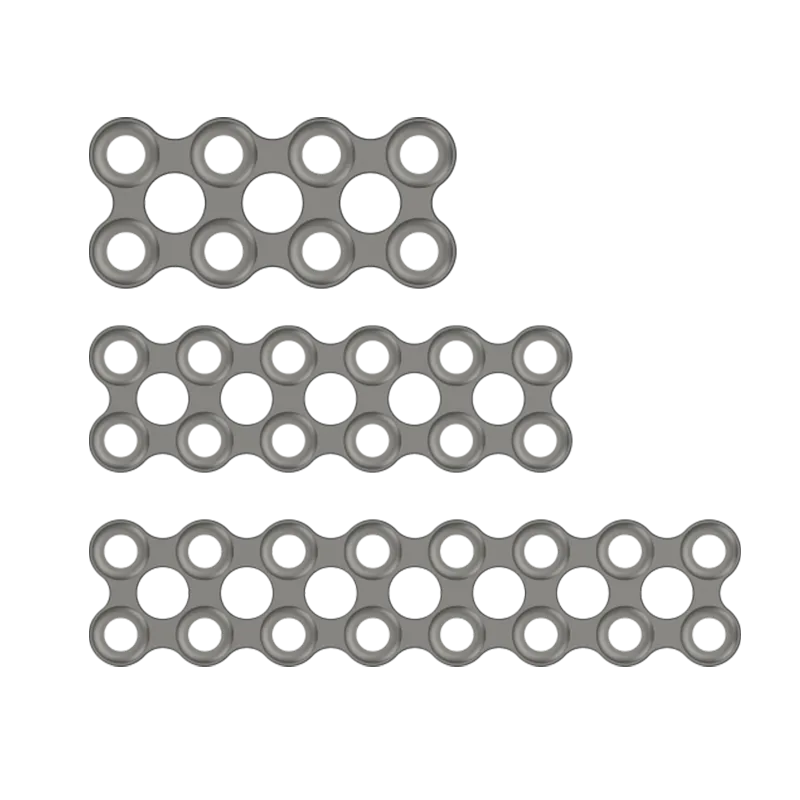

CMF – Locking Rectangle Plate3 / 19

CMF – Locking Rectangle Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.220 – Ti.850.222	1.0	8 -16	25 – 51

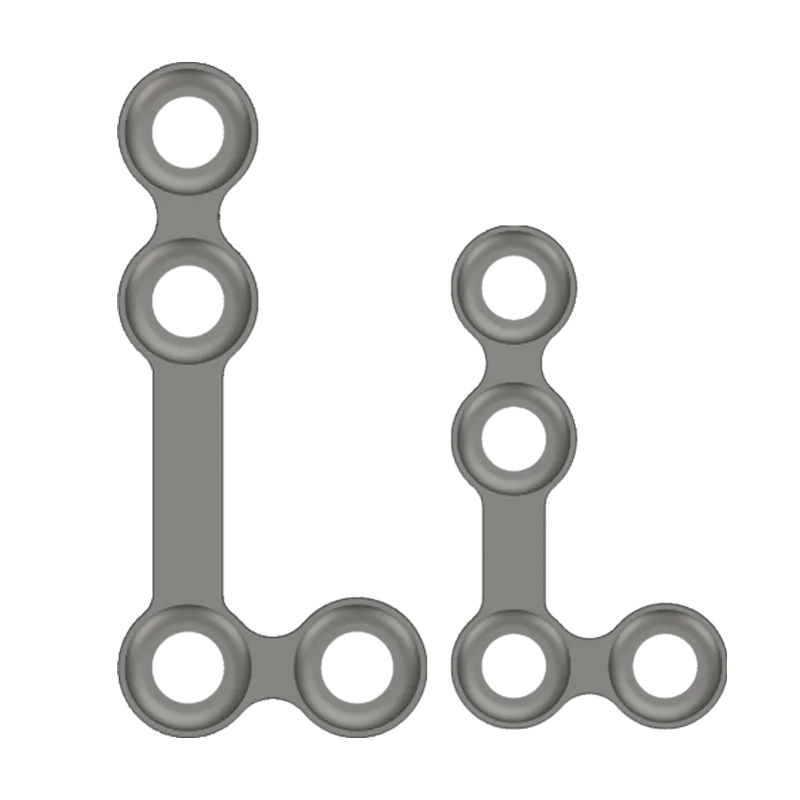

CMF – Locking L-Plate 90°4 / 19

CMF – Locking L-Plate 90°

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.230 – Ti.850.231	1.0	4	20 – 24

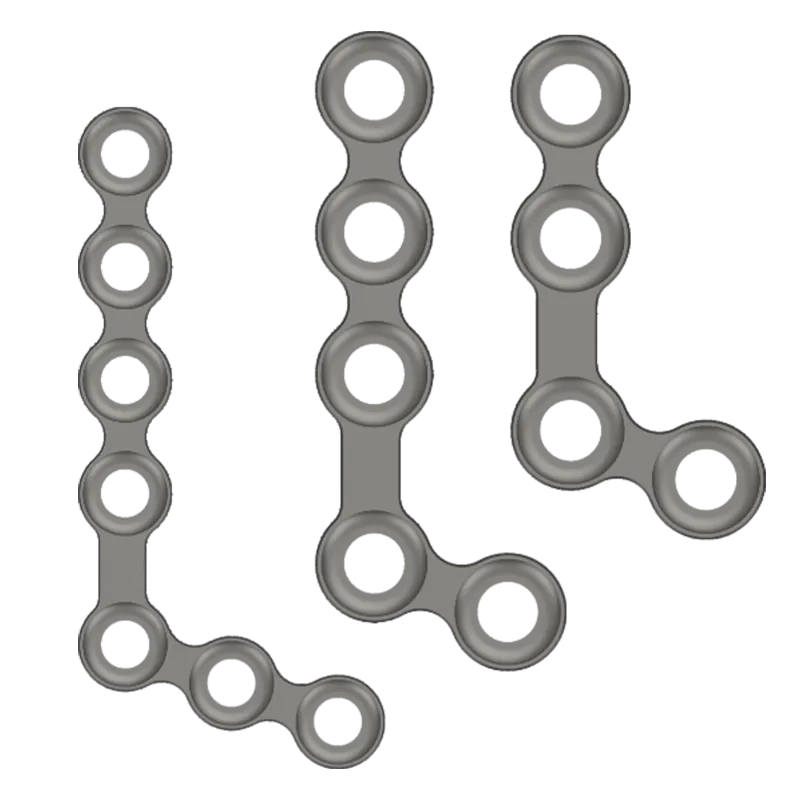

CMF – Locking L-Plate 110°5 / 19

CMF – Locking L-Plate 110°

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.235 – Ti.850.237	1.0	4 – 7	19 – 31

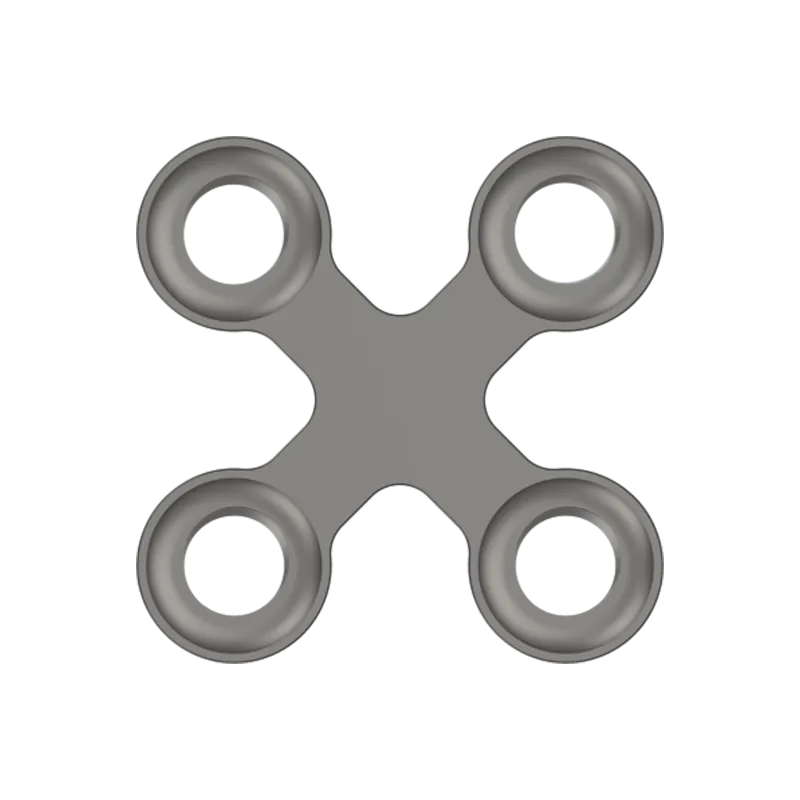

CMF – Locking X – Plate6 / 19

CMF – Locking X – Plate

Cat No.	Thickness	Holes	Length
Ti.850.240	1.0mm	4	17 mm

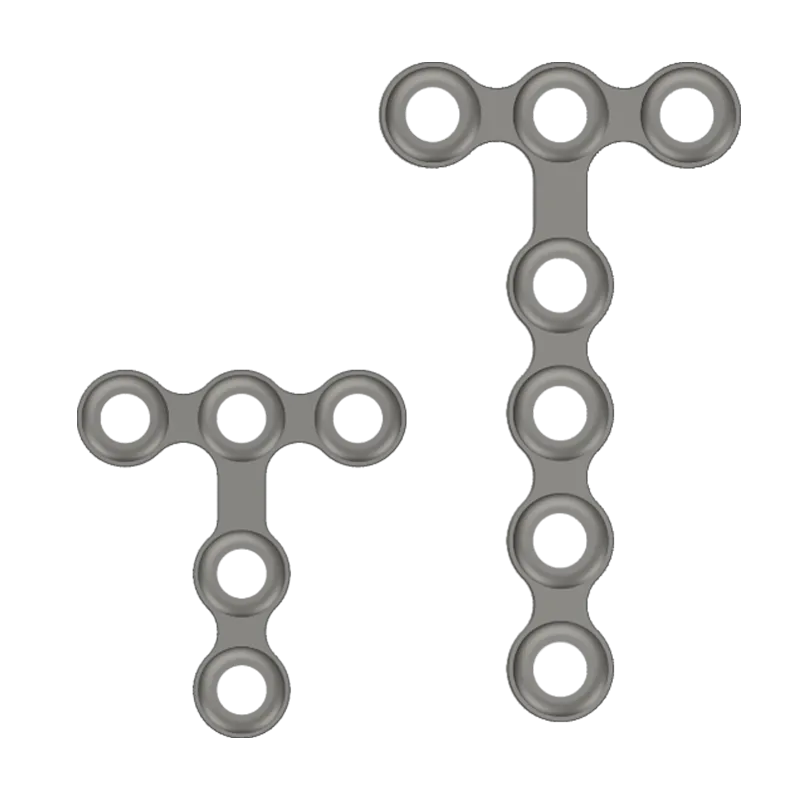

CMF – Locking T – Plate7 / 19

CMF – Locking T – Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.245 – Ti.850.246	1.0	5 – 7	19 – 31

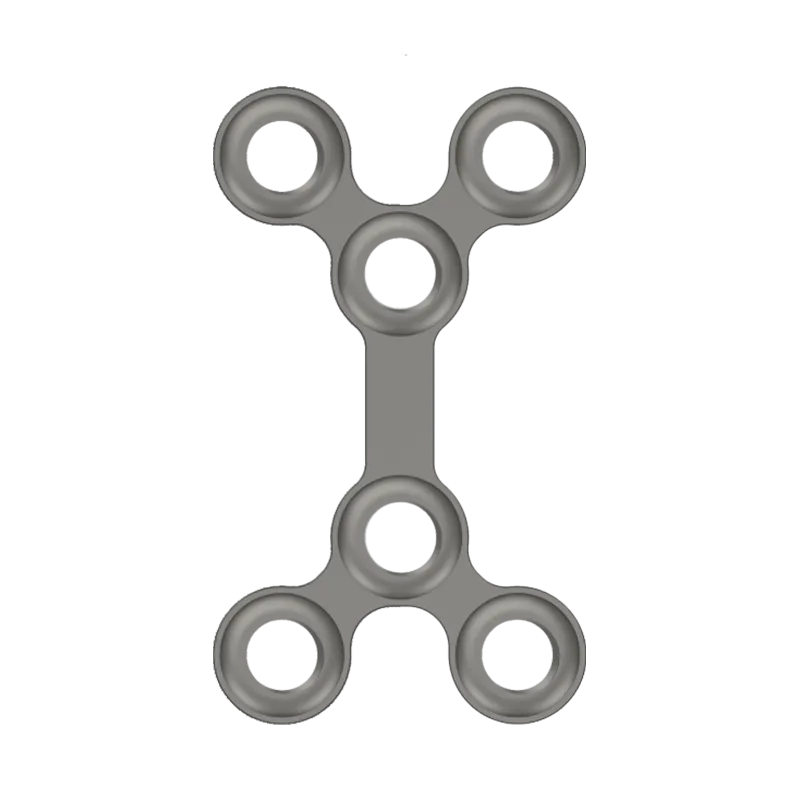

CMF – Locking Double Y – Plate8 / 19

CMF – Locking Double Y – Plate

Cat No.	Thickness	Holes	Length
Ti.850.250	1.0mm	6	23 mm

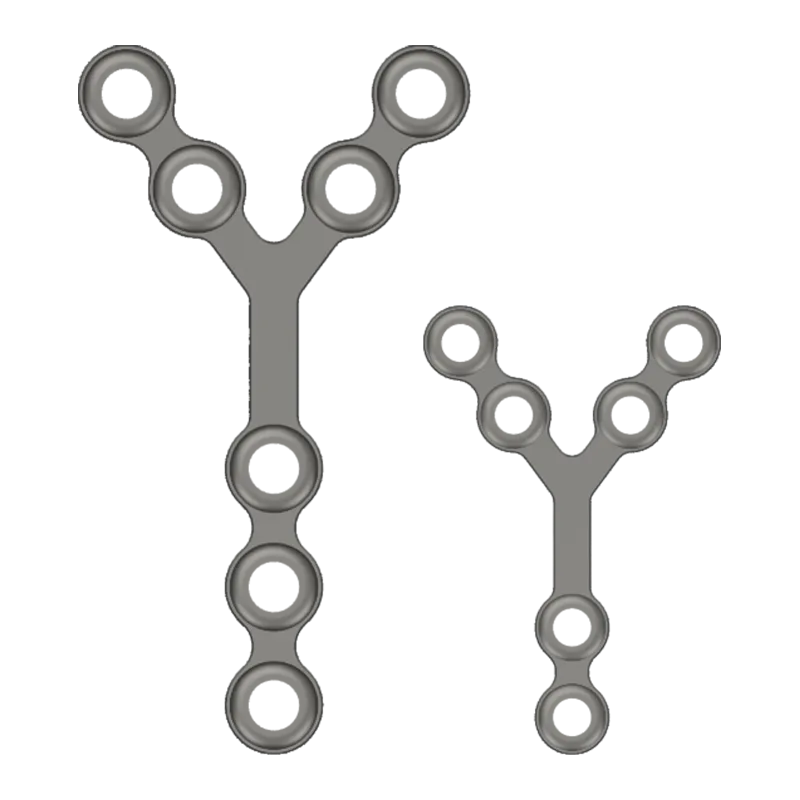

CMF – Locking Y – Plate9 / 19

CMF – Locking Y – Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.251 – Ti.850.252	1.0	6 – 7	30 – 36

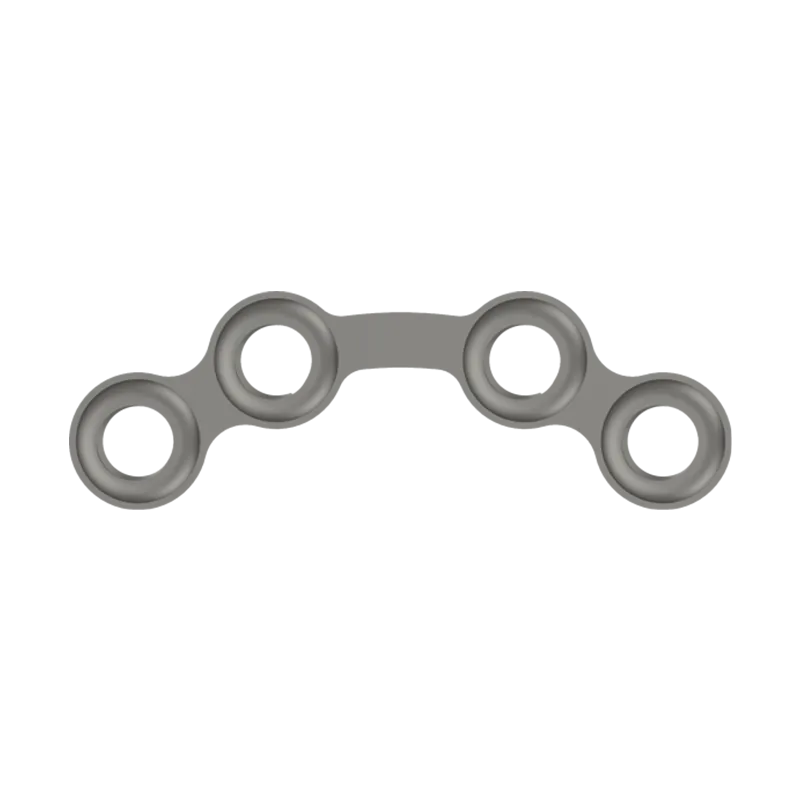

CMF – Locking Arc Bridge Plate10 / 19

CMF – Locking Arc Bridge Plate

Cat No.	Thickness	Holes	Length
Ti.850.255	1.0mm	4	24 mm

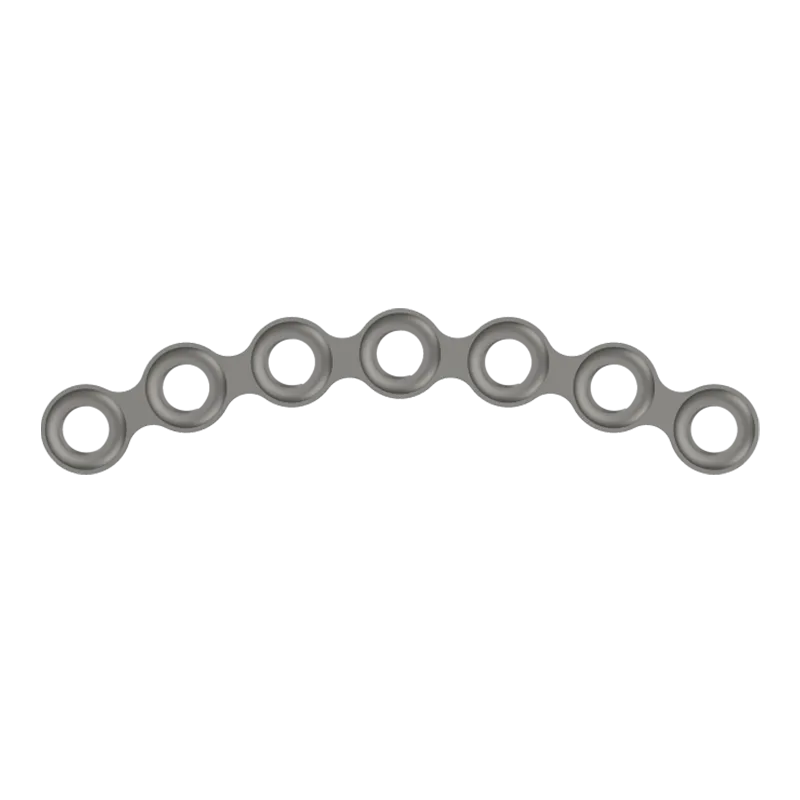

CMF – Locking Arc Plate11 / 19

CMF – Locking Arc Plate

Cat No.	Thickness	Holes	Length
Ti.850.260	1.0mm	7	40 mm

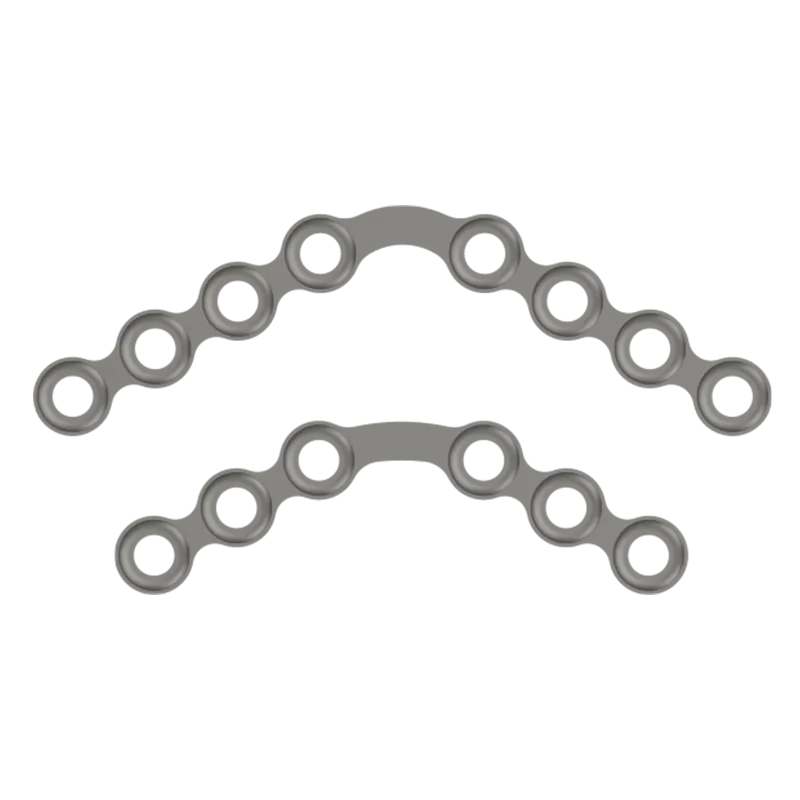

CMF – Locking Arc Plate 120°12 / 19

CMF – Locking Arc Plate 120°

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.265 – Ti.850.266	1.0	6 – 8	36 – 46

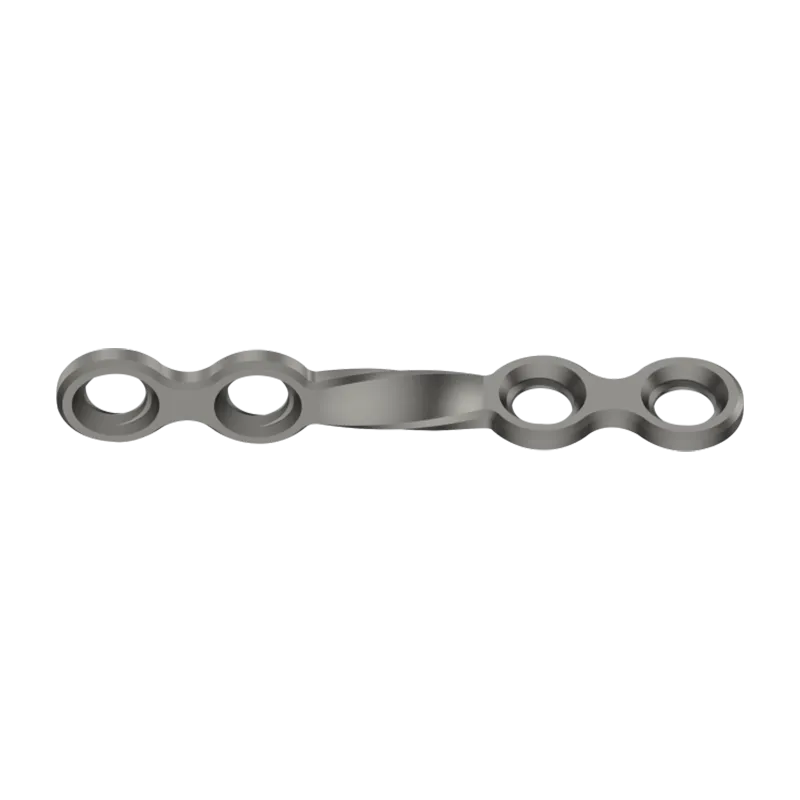

CMF – Locking Retromolar Triangle Alveolar Ridge Plate13 / 19

CMF – Locking Retromolar Triangle Alveolar Ridge Plate

Cat No.	Thickness	Holes	Length
Ti.850.270	1.0mm	4	29 mm Left
Ti.850.271	1.0mm	4	29 mm Right

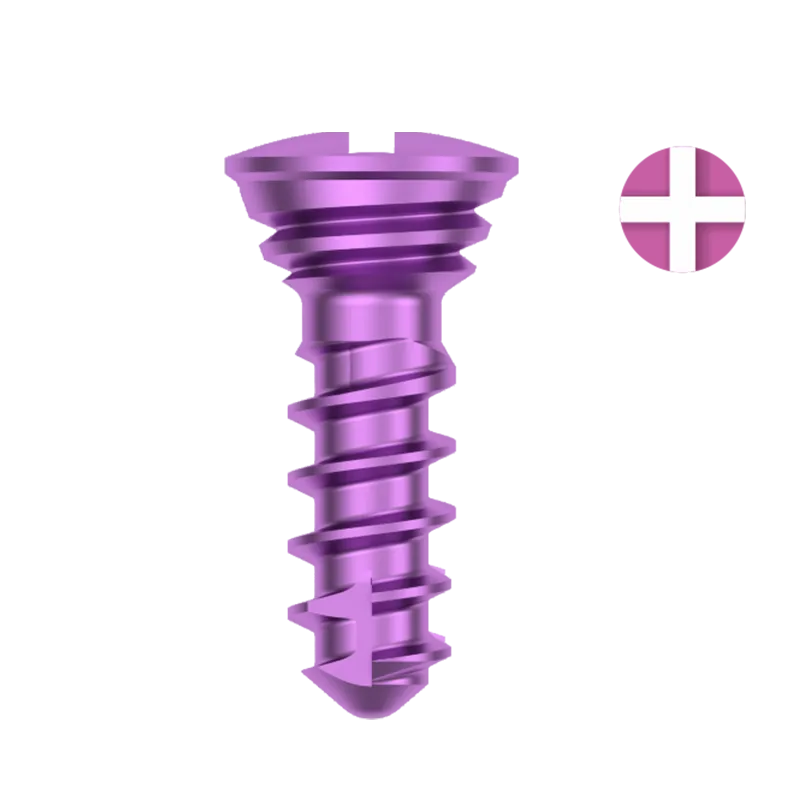

CMF – Cross Drive LOCKING Screw Self Tapping – 2.0 mm Dia.14 / 19

CMF – Cross Drive LOCKING Screw Self Tapping – 2.0 mm Dia.

Cat No.	Length (mm)
Ti.126.105 – Ti.126.113	5.5 – 13

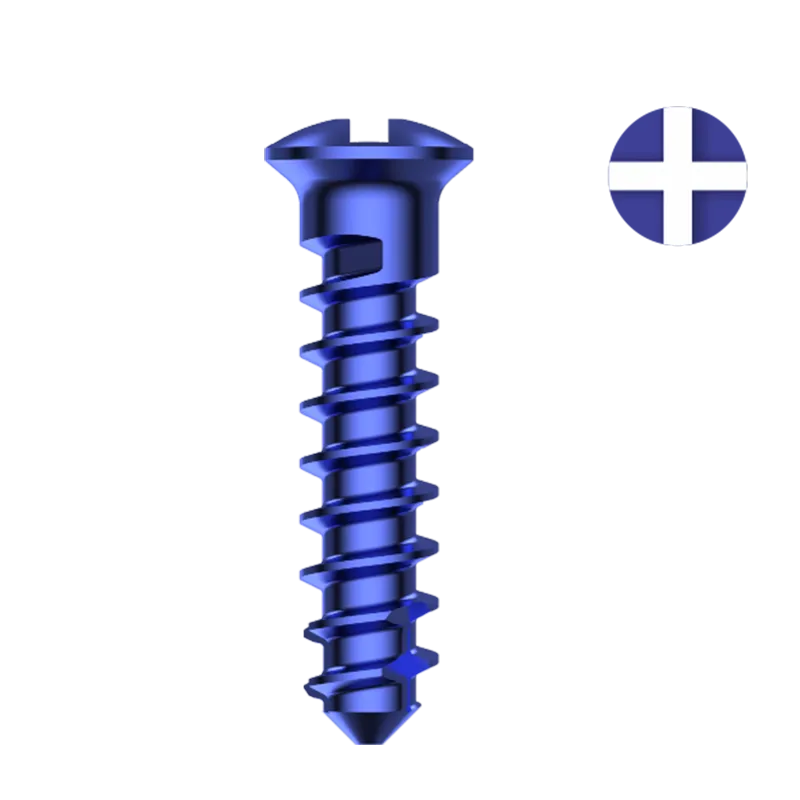

CMF – Cross Drive NON Locking Screw – Self Tapping – 2.0 mm Dia.15 / 19

CMF – Cross Drive NON Locking Screw – Self Tapping – 2.0 mm Dia.

Cat No.	Length (mm)
Ti.126.205 – Ti.126.213	5.5 – 13

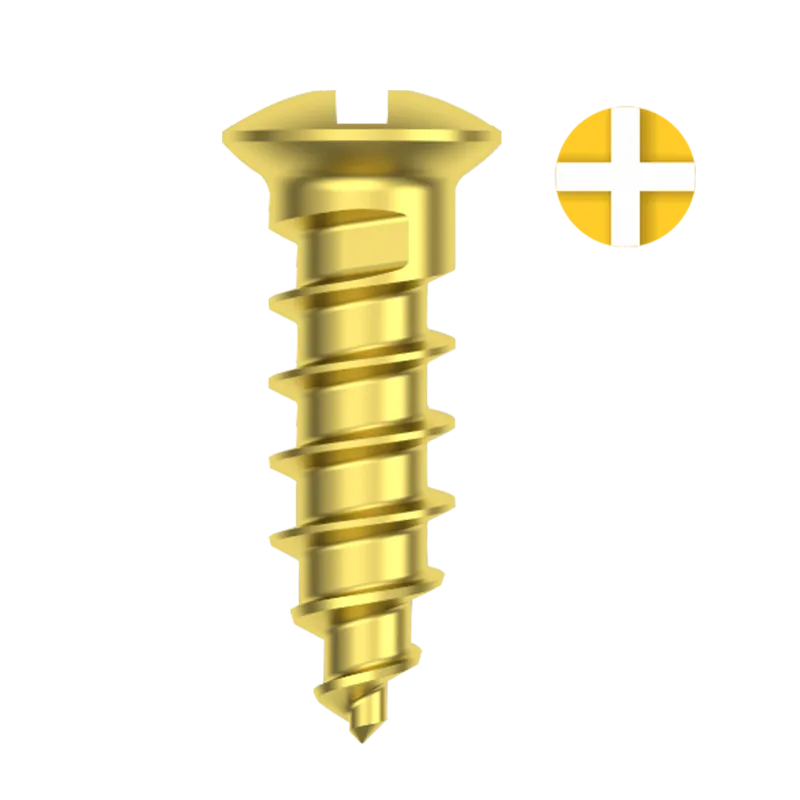

CMF – Cross Drive NON LOCKING Screw – Self Drilling – 2.0 mm Dia.16 / 19

CMF – Cross Drive NON LOCKING Screw – Self Drilling – 2.0 mm Dia.

Cat No.	Length (mm)
Ti.126.305 – Ti.126.311	5 – 11

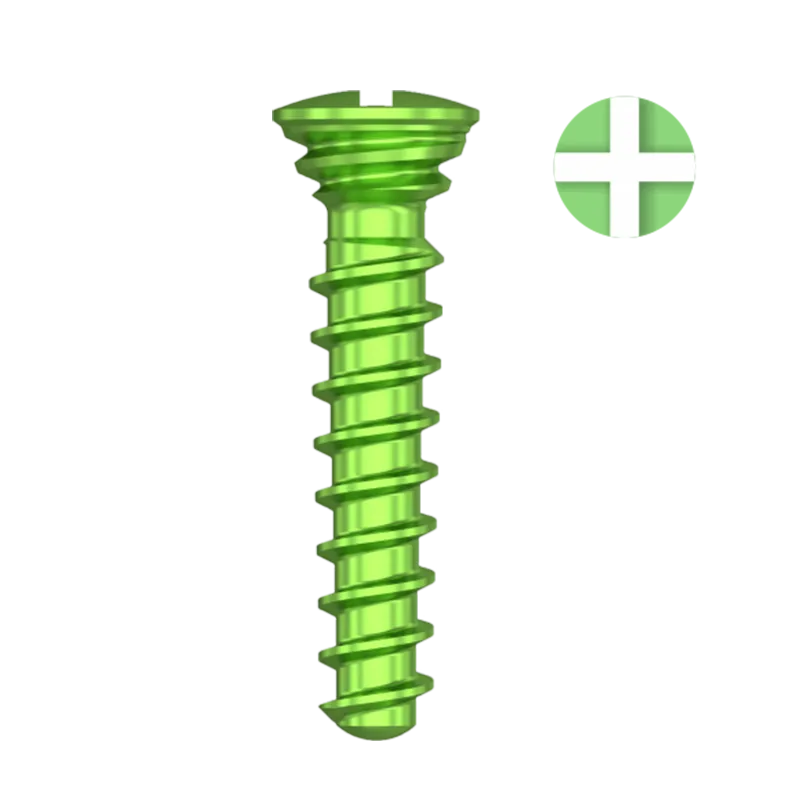

CMF – Locking EMERGENCY Screw 2.3 mm Dia.17 / 19

CMF – Locking EMERGENCY Screw 2.3 mm Dia.

Cat No.	Length (mm)
Ti.126.406 – Ti.126.414	6 – 14

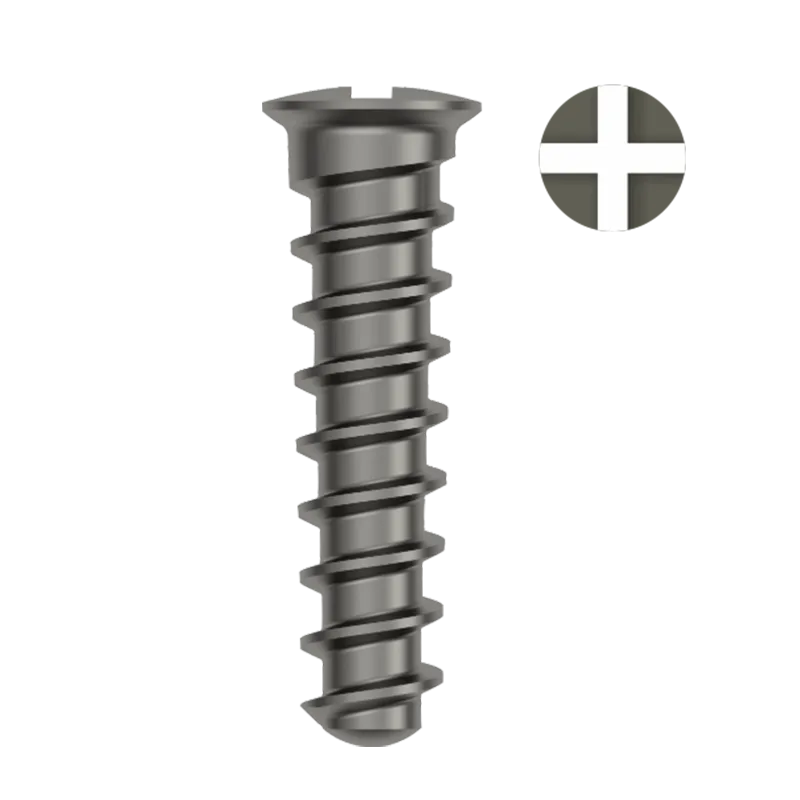

CMF – Non-Locking EMERGENCY Screw 2.3 mm Dia.18 / 19

CMF – Non-Locking EMERGENCY Screw 2.3 mm Dia.

Cat No.	Length (mm)
Ti.126.506 – Ti.126.514	6 – 14

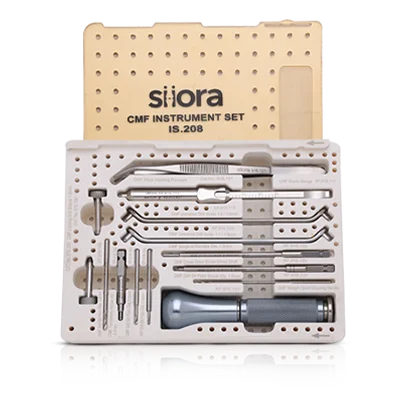

CMF Instrument Set19 / 19

CMF Instrument Set

Cat No. IS.208	Description	Units
XP.916.101	CMF Straight Quick Coupling Handle	1
XP.916.102	CMF Cross Drive Screw Driver Shaft	1
XP.916.103	CMF Surgical Elevator 1.5mm Dia.	1
XP.916.104	CMF Drill Bit – Plain Shank Dia. 1.1mm X 8.5mm X 48mm Long	1
XP.916.105	CMF Drill Bit – Plain Shank Dia. 1.6mm X 12mm X 48mm Long	1
XP.916.106	CMF Drill Bit – Plain Shank Dia. 1.9mm X 22mm X 58mm Long	1
XP.916.107	CMF Drill Bit – Plain Shank Dia. 1.9mm X 57mm X 82mm Long	1
XP.916.108	CMF Temporary Holder HC 2.4mm	2
XP.916.109	CMF Universal Drill Guide 1.1/1.6mm	1
XP.916.110	CMF Universal Drill Guide 1.6/1.9mm	1
XP.916.111	CMF Depth Gauge	1
916.120	CMF Locking Drill Sleeve 1.9mm	2
916.121	CMF Plate Holding Forceps	1
400.177	Instrument Box for Maxillofacial Plating System (Medical Grade Plastic)	1

Las fotografías y los datos corresponden al catálogo de Siora. Disponibilidad, documentación sanitaria, precio y condiciones de suministro se confirman con Kallos para cada destino. Los rangos no se descomponen en referencias individuales.
