Sistema maxilofacial MID 1,5 mm

Mid 1.5mm System Maxillofacial Implants

Fabricante: Siora Surgicals Pvt. Ltd.
Fuente consultada: 2026-09-20 · Ver página original ↗

Prepara tu consulta

Referencia o rango publicadoTi.850.301 – Ti.850.304 · Cat No. · Thickness (mm): 1.5 · Holes: 6 – 16 · Length (mm): 35 – 95Ti.610.55.30 – Ti.610.55.50 · Cat No. (Titanium) · Dia (mm): 5.5 · Length (mm): 30-50 *Ti.610.65.30 – Ti.610.65.50 · Cat No. (Titanium) · Dia (mm): 6.5 · Length (mm): 30-50 *Ti.610.75.30 – Ti.610.75.50 · Cat No. (Titanium) · Dia (mm): 7.5 · Length (mm): 30-50 *Ti.850.315 – Ti.850.316 · Cat No. · Thickness (mm): 1.5 · Holes: 4 – 6 · Length (mm): 29 – 40Ti.850.320 – Ti.850.321 · Cat No. · Thickness (mm): 1.5 · Holes: 6 – 8 · Length (mm): 36 – 46Ti.850.330 – Ti.850.332 · Cat No. · Thickness (mm): 1.5 · Holes: 8 – 16 · Length (mm): 25 – 51Ti.850.340 – Ti.850.341 · Cat No. · Thickness (mm): 1.5 · Holes: 5 – 7 · Length (mm): 19 – 31Ti.850.355 · Cat No. · Thickness: 1.5 mm · Holes: 4 · Length: 17 mmTi.850.360 · Cat No. · Thickness: 1.5 mm · Holes: 6 · Length: 23 mmTi.850.365 – Ti.850.366 · Cat No. · Thickness (mm): 1.5 · Holes: 6 – 7 · Length (mm): 30 – 36Ti.850.370 – Ti.850.373 · Cat No. · Thickness (mm): 1.5 · Holes: 7, 11, 15, 19 · Length (mm): 17, 29, 41, 53Ti.126.105 – Ti.126.113 · Cat No. · Length (mm): 5.5, 7, 9, 11, 13Ti.126.205 – Ti.126.213 · Cat No. · Length (mm): 5.5, 7, 9, 11, 13Ti.126.305 – Ti.126.311 · Cat No. · Length (mm): 5, 6, 7, 9, 11Ti.126.406 – Ti.126.414 · Cat No. · Length (mm): 6, 7 , 8 , 9, 11, 13, 14Ti.126.506 – Ti.126.514 · Cat No. · Length (mm): 6, 7 , 8 , 9, 11, 13, 14

Ti.850.301 – Ti.850.304 · Cat No. · Thickness (mm): 1.5 · Holes: 6 – 16 · Length (mm): 35 – 95

La fuente publica un rango. La referencia individual y la medida se precisan con el equipo comercial.

Cantidad solicitadaConsultar esta selección ↗Continúa con tu institución y destino. Esta selección no reserva inventario.

Fotografías y tablas técnicas

Se conserva la denominación, las unidades y los rangos publicados por el fabricante.

CMF – Locking Straight Plate1 / 18

CMF – Locking Straight Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.301 – Ti.850.304	1.5	6 – 16	35 – 95

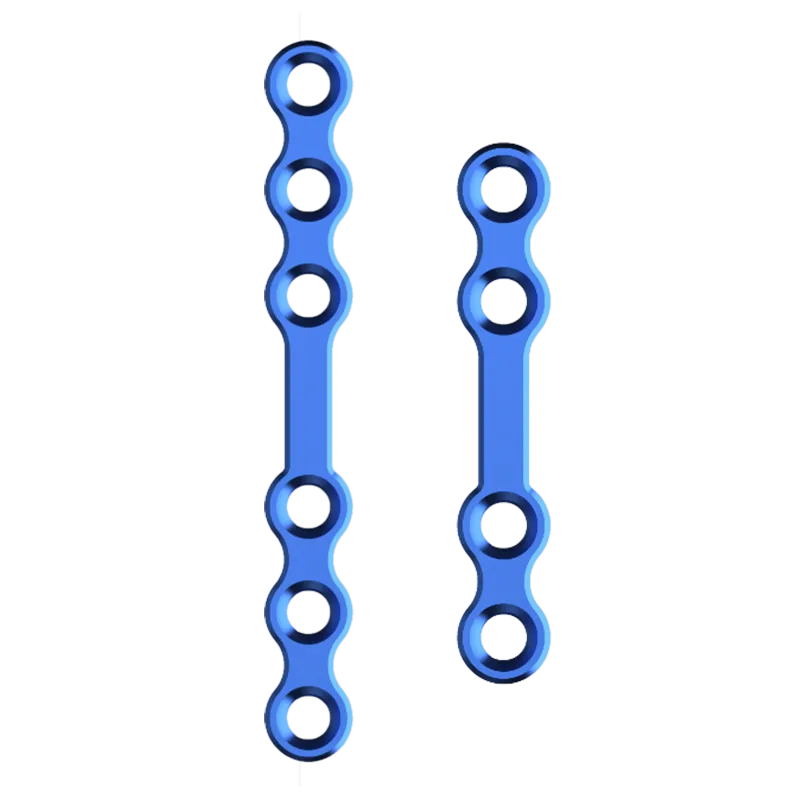

CMF – Locking Straight Bridge Plate2 / 18

CMF – Locking Straight Bridge Plate

Cat No. (Titanium)	Dia (mm)	Length (mm)
Ti.610.55.30 – Ti.610.55.50	5.5	30-50 *
Ti.610.65.30 – Ti.610.65.50	6.5	30-50 *
Ti.610.75.30 – Ti.610.75.50	7.5	30-50 *

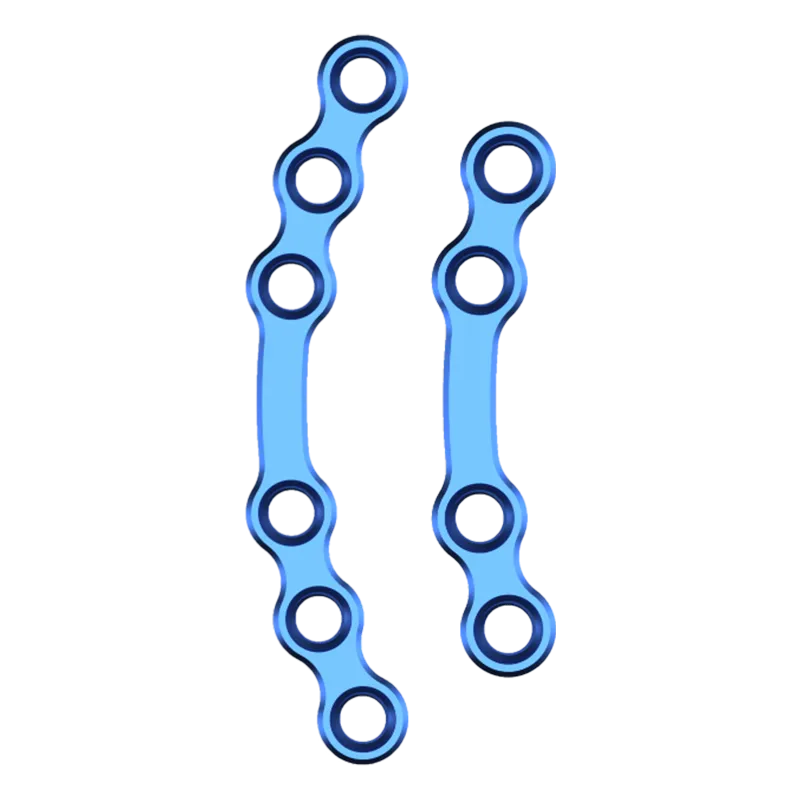

CMF – Locking Arc Bridge Plate3 / 18

CMF – Locking Arc Bridge Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.315 – Ti.850.316	1.5	4 – 6	29 – 40

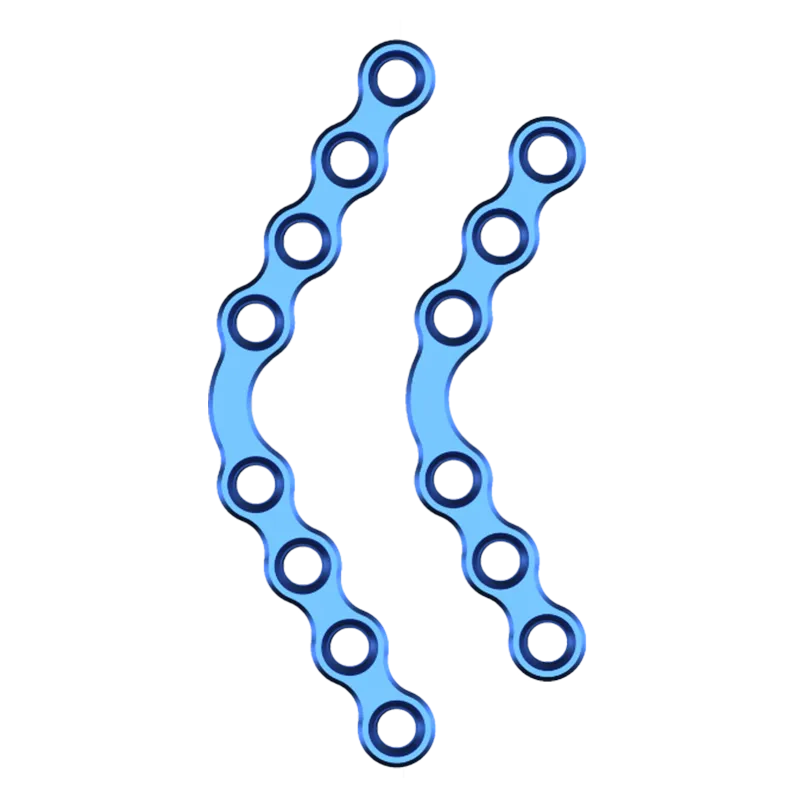

CMF – Locking Arc Plate 120°4 / 18

CMF – Locking Arc Plate 120°

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.320 – Ti.850.321	1.5	6 – 8	36 – 46

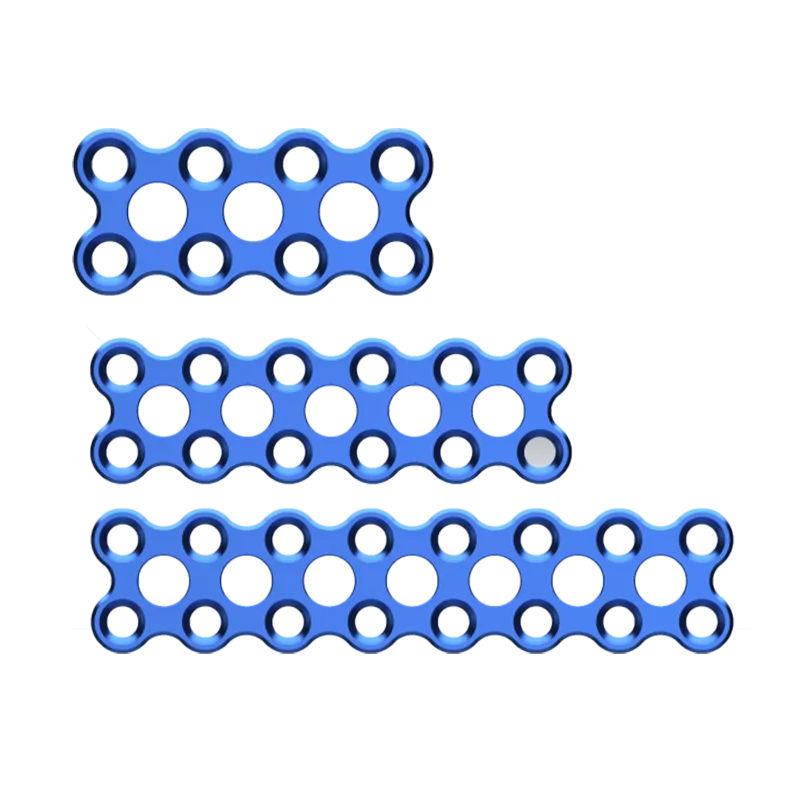

CMF – Locking Rectangle Plate5 / 18

CMF – Locking Rectangle Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.330 – Ti.850.332	1.5	8 – 16	25 – 51

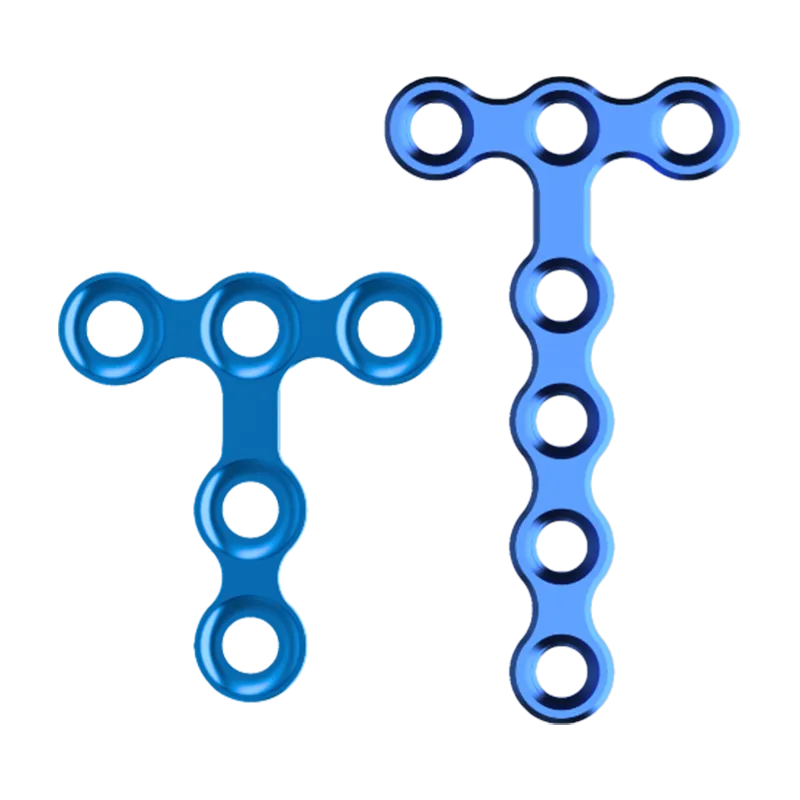

CMF – Locking T- Plate6 / 18

CMF – Locking T- Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.340 – Ti.850.341	1.5	5 – 7	19 – 31

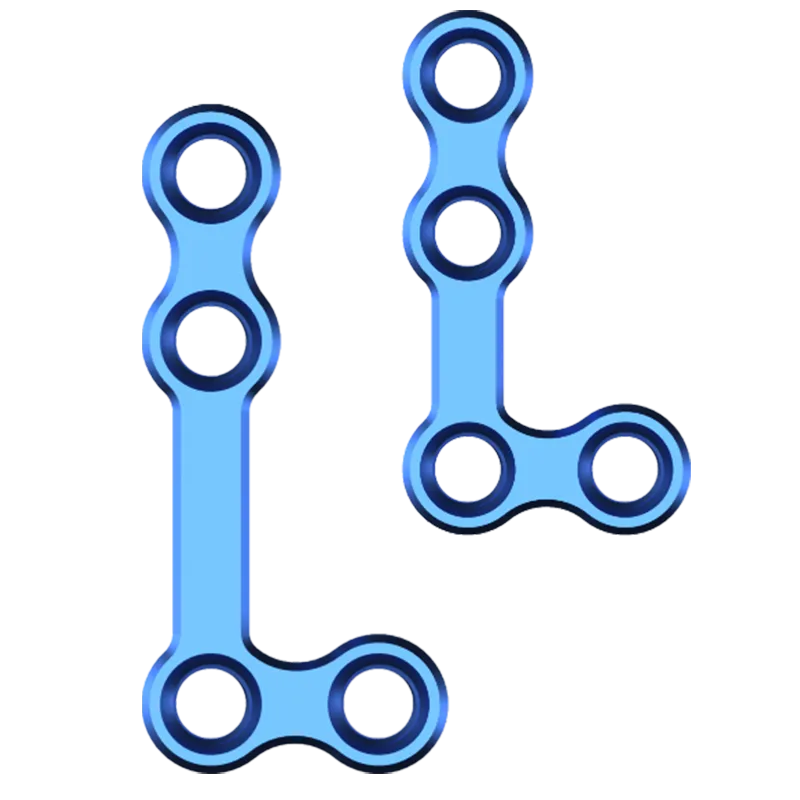

CMF – Locking L-Plate 90°7 / 18

CMF – Locking L-Plate 90°

4 Holes
Cat No. (Left)	Thickness (mm)	Length (mm)	Cat No. (Right)
Ti.850.343 – Ti.850.344	1.5 mm	20, 24	Ti.850.345 – Ti.850.346

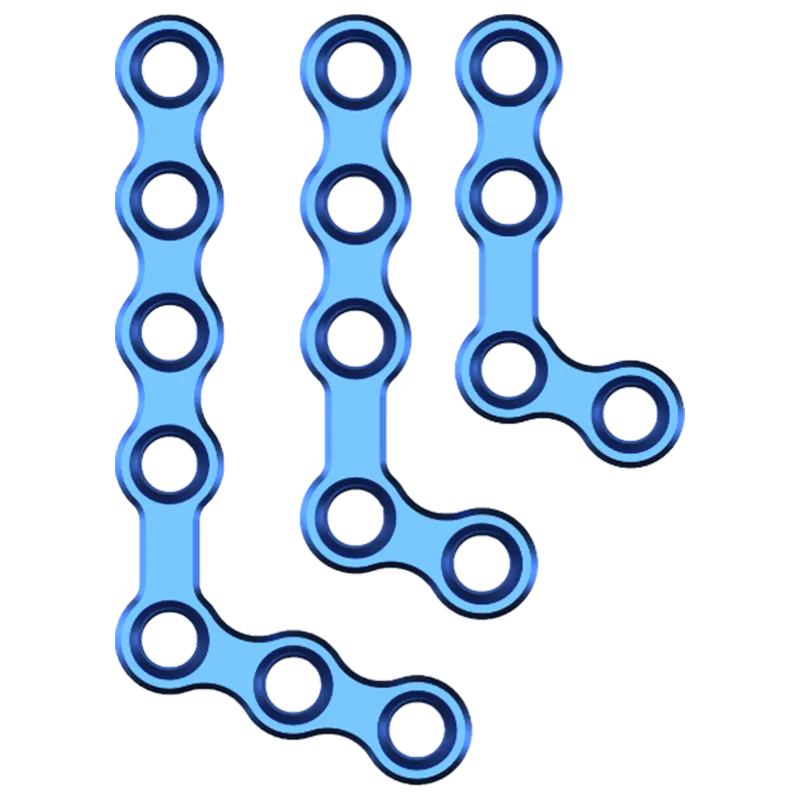

CMF – Locking L-Plate 110°8 / 18

CMF – Locking L-Plate 110°

Thickness 1.5 mm
Cat No. (Left)	Holes	Length (mm)	Cat No. (Right)
Ti.850.348 – Ti.850.350	4, 5, 7	19, 25, 31	Ti.850.351 – Ti.850.353

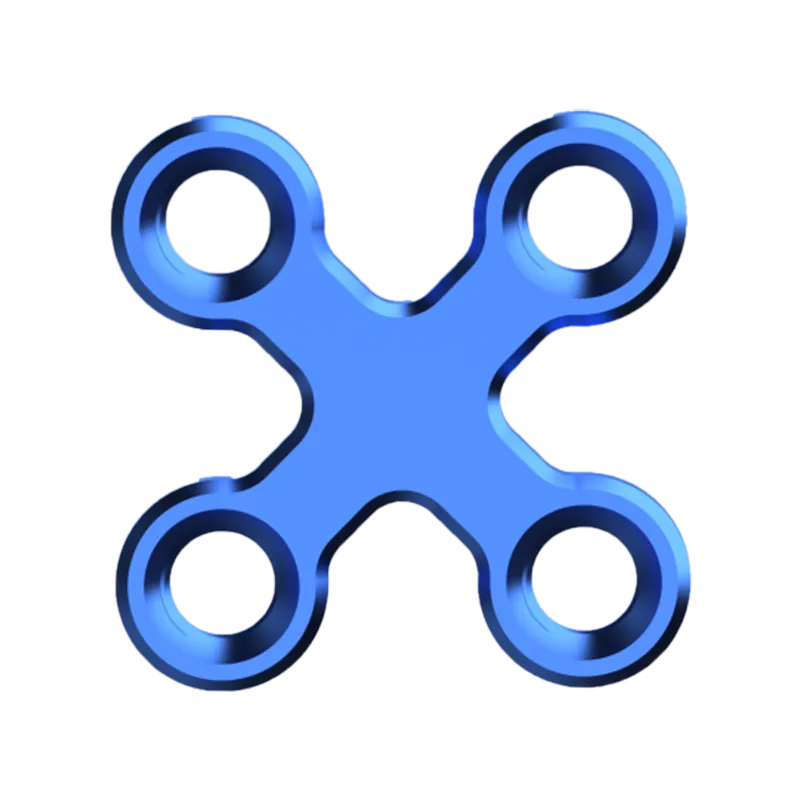

CMF – Locking X – Plate9 / 18

CMF – Locking X – Plate

Cat No.	Thickness	Holes	Length
Ti.850.355	1.5 mm	4	17 mm

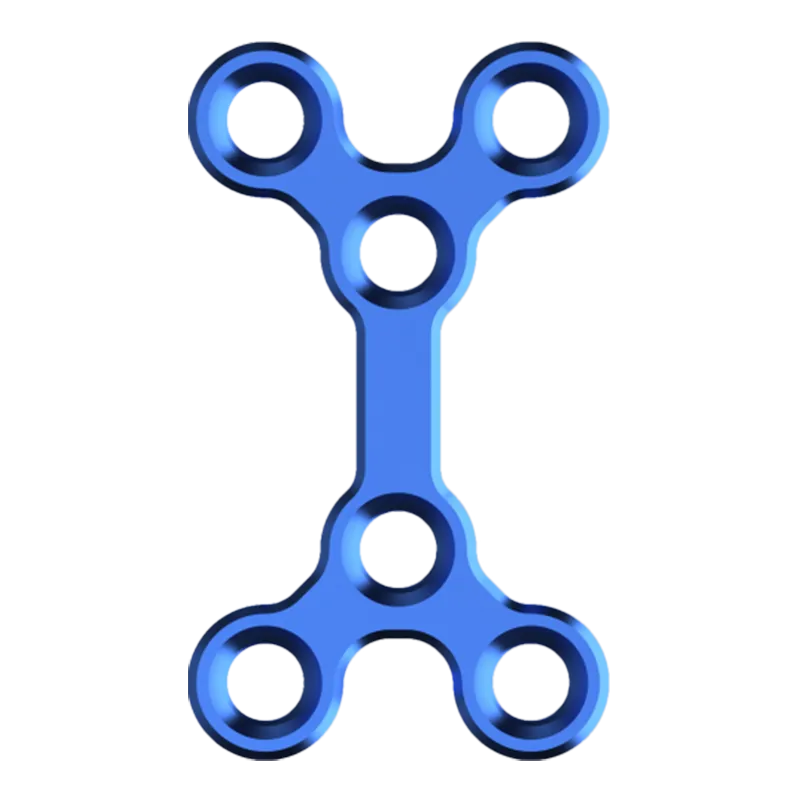

CMF – Locking Double Y- Plate10 / 18

CMF – Locking Double Y- Plate

Cat No.	Thickness	Holes	Length
Ti.850.360	1.5 mm	6	23 mm

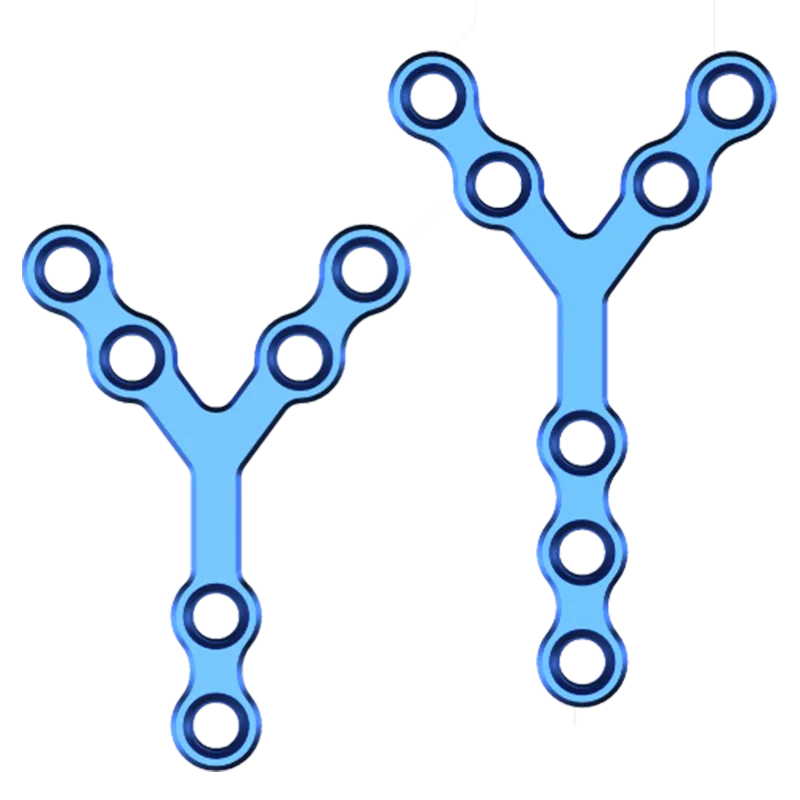

CMF – Locking Y- Plate11 / 18

CMF – Locking Y- Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.365 – Ti.850.366	1.5	6 – 7	30 – 36

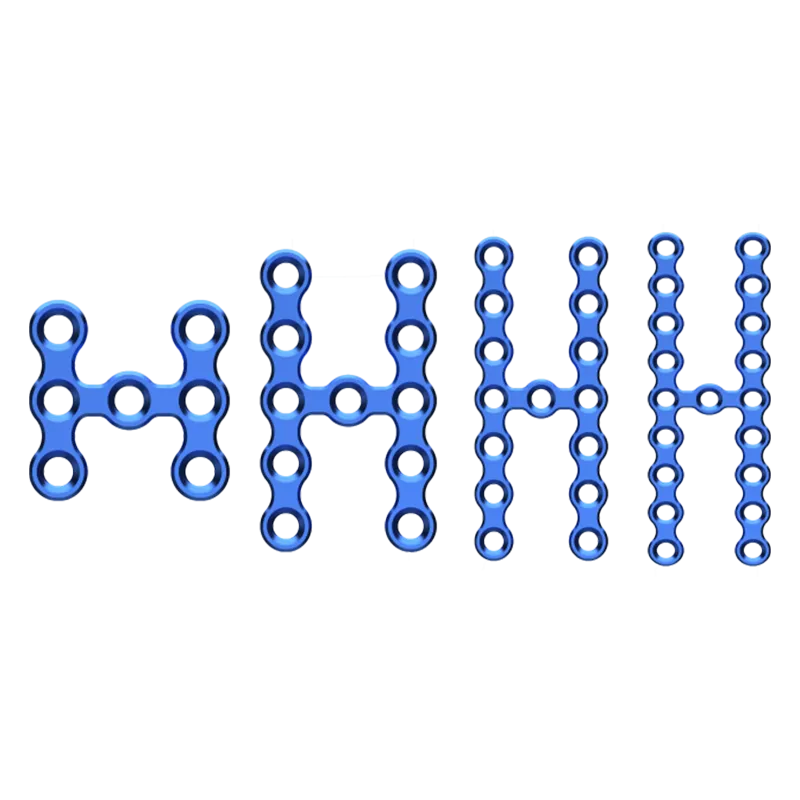

CMF – Locking H – Plate12 / 18

CMF – Locking H – Plate

Cat No.	Thickness (mm)	Holes	Length (mm)
Ti.850.370 – Ti.850.373	1.5	7, 11, 15, 19	17, 29, 41, 53

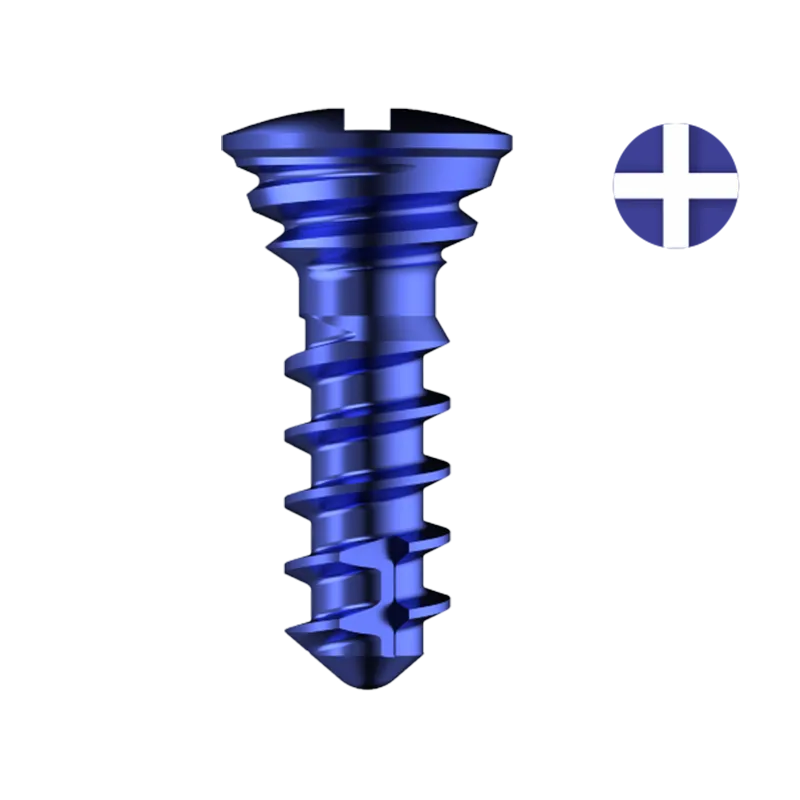

CMF – Cross Drive LOCKING Screw Self Tapping – 2.0 mm Dia.13 / 18

CMF – Cross Drive LOCKING Screw Self Tapping – 2.0 mm Dia.

Cat No.	Length (mm)
Ti.126.105 – Ti.126.113	5.5, 7, 9, 11, 13

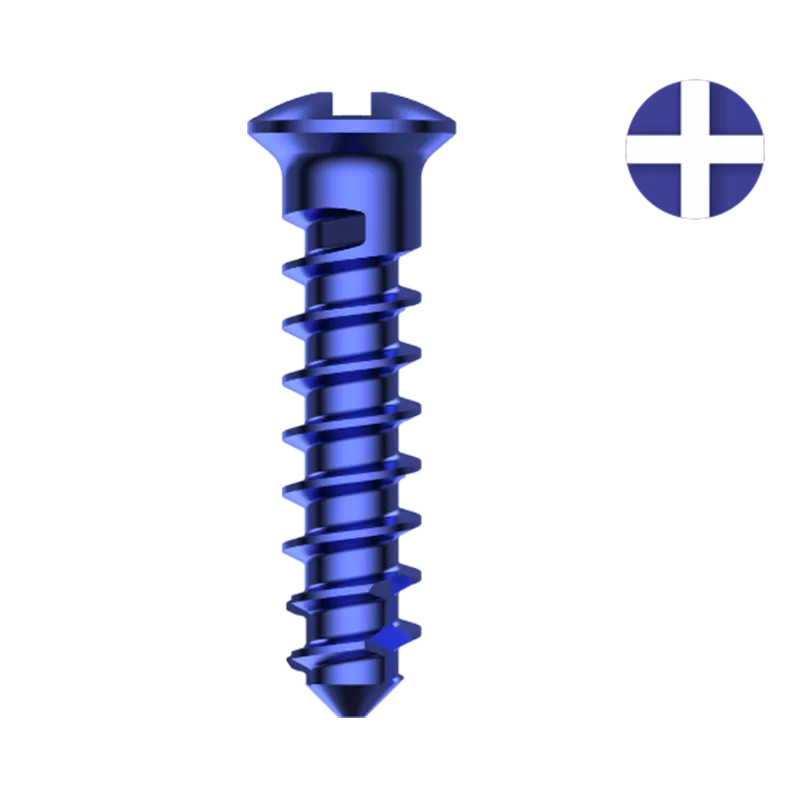

CMF – Cross Drive Non Locking Screw – Self Tapping – 2.0 mm Dia.14 / 18

CMF – Cross Drive Non Locking Screw – Self Tapping – 2.0 mm Dia.

Cat No.	Length (mm)
Ti.126.205 – Ti.126.213	5.5, 7, 9, 11, 13

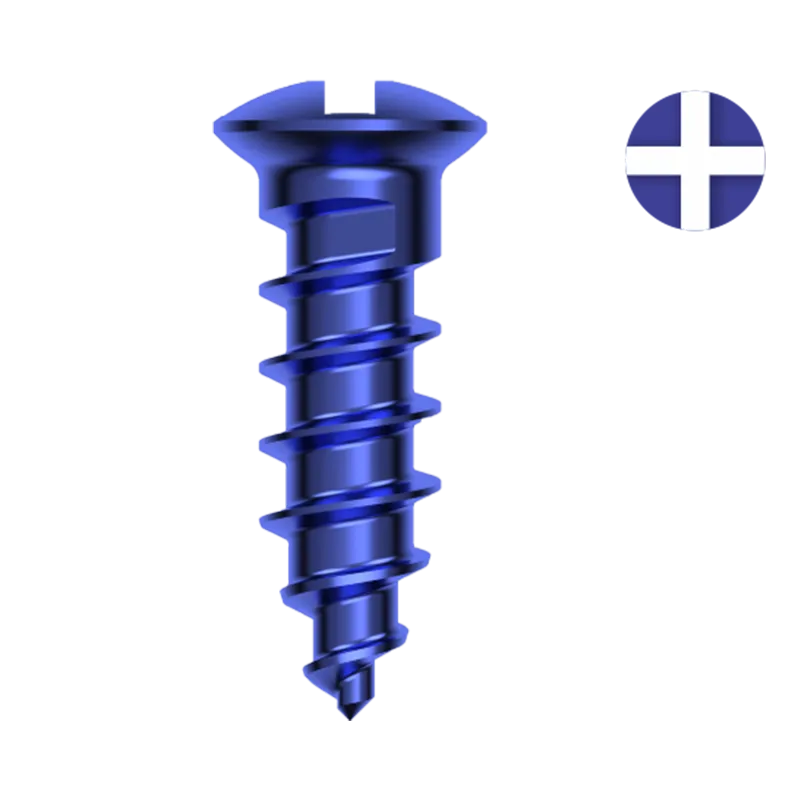

CMF – Cross Drive Non Locking Screw – Self Drilling – 2.0 mm Dia.15 / 18

CMF – Cross Drive Non Locking Screw – Self Drilling – 2.0 mm Dia.

Cat No.	Length (mm)
Ti.126.305 – Ti.126.311	5, 6, 7, 9, 11

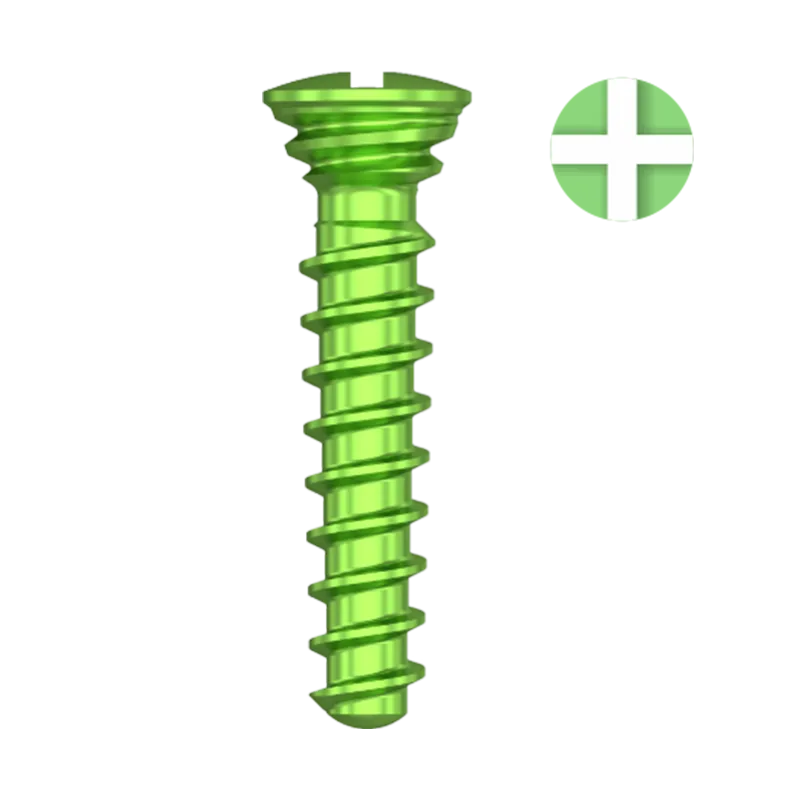

CMF – Locking Emergency Screw 2.3 mm Dia.16 / 18

CMF – Locking Emergency Screw 2.3 mm Dia.

Cat No.	Length (mm)
Ti.126.406 – Ti.126.414	6, 7 , 8 , 9, 11, 13, 14

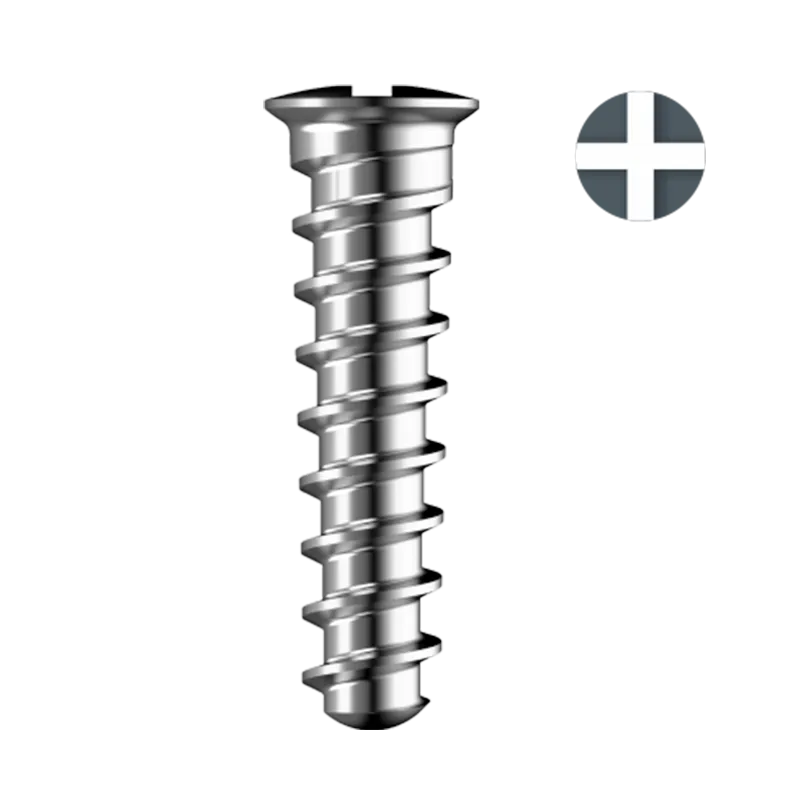

CMF – Non- Locking Emergency Screw 2.3 mm Dia.17 / 18

CMF – Non- Locking Emergency Screw 2.3 mm Dia.

Cat No.	Length (mm)
Ti.126.506 – Ti.126.514	6, 7 , 8 , 9, 11, 13, 14

CMF Instrument Set18 / 18

CMF Instrument Set

Cat No. IS.208	Description	Units
XP.916.101	CMF Straight Quick Coupling Handle	1
XP.916.102	CMF Cross Drive Screw Driver Shaft	1
XP.916.103	CMF Surgical Elevator 1.5mm Dia.	1
XP.916.104	CMF Drill Bit – Plain Shank Dia. 1.1mm X 8.5mm X 48mm Long	1
XP.916.105	CMF Drill Bit – Plain Shank Dia. 1.6mm X 12mm X 48mm Long	1
XP.916.106	CMF Drill Bit – Plain Shank Dia. 1.9mm X 22mm X 58mm Long	1
XP.916.107	CMF Drill Bit – Plain Shank Dia. 1.9mm X 57mm X 82mm Long	1
XP.916.108	CMF Temporary Holder HC 2.4mm	2
XP.916.109	CMF Universal Drill Guide 1.1/1.6mm	1
XP.916.110	CMF Universal Drill Guide 1.6/1.9mm	1
XP.916.111	CMF Depth Gauge	1
916.120	CMF Locking Drill Sleeve 1.9mm	2
916.121	CMF Plate Holding Forceps	1
400.177	Instrument Box for Maxillofacial Plating System (Medical Grade Plastic)	1

Las fotografías y los datos corresponden al catálogo de Siora. Disponibilidad, documentación sanitaria, precio y condiciones de suministro se confirman con Kallos para cada destino. Los rangos no se descomponen en referencias individuales.
