Sistema maxilofacial MINI 0,6 / 0,8 mm

Mini 0.6-0.8mm Maxillofacial Implant System

Fabricante: Siora Surgicals Pvt. Ltd.
Fuente consultada: 2026-09-20 · Ver página original ↗

Prepara tu consulta

Referencia o rango publicadoTi.850.101 · Cat No. · Thickness: 0.6mm · Holes: 4 · Length: 14 mmTi.850.102 · Cat No. · Thickness: 0.6mm · Holes: 4 · Length: 14 mmTi.850.103 · Cat No. · Thickness: 0.6mm · Holes: 4 · Length: 20 mmTi.850.110 – Ti.850.114 · Cat No. · Thickness: 0.6mm · Holes: 6 – 14 · Length (mm): 24 – 56Ti.850.120 – Ti.850.124 · Cat No. · Thickness: 0.6mm · Holes: 6 – 14 · Length (mm): 24 – 49Ti.850.130 · Cat No. · Thickness: 0.6mm · Holes: 4 · Length: 16 mmTi.850.135 · Cat No. · Thickness: 0.6mm · Holes: 4 · Length: 16 mmTi.850.136 · Cat No. · Thickness: 0.6mm · Holes: 5 · Length: 20 mmTi.850.140 · Cat No. · Thickness: 0.6mm · Holes: 5 · Length: 16 mmTi.850.141 · Cat No. · Thickness: 0.6mm · Holes: 7 · Length: 24 mmTi.850.145 · Cat No. · Thickness: 0.6mm · Holes: 6 · Length: 17 mmTi.850.150 · Cat No. · Thickness: 0.6mm · Holes: 6 · Length: 24 mmTi.850.151 · Cat No. · Thickness: 0.6mm · Holes: 7 · Length: 28 mmTi.850.160 · Cat No. · Product Name: CMF – Preformed Orbital Plate – Small – LeftTi.850.165 · Cat No. · Product Name: CMF – Preformed Orbital Plate – Small – RightTi.850.170 · Cat No. · Product Name: CMF – Preformed Orbital Plate – Large – LeftTi.850.175 · Cat No. · Product Name: CMF – Preformed Orbital Plate – Large – RightTi.850.181 – Ti.850.183 · Cat No. · Thickness: 0.8mm · Holes: 5 · Length (mm): 6 – 10Ti.125.104 – Ti.125.108 · Cat No. · Length (mm): 4 – 8Ti.125.204 – Ti.125.208 · Cat No. · Length (mm): 4 – 8Ti.125.304 – Ti.125.308 · Cat No. · Length (mm): 4 – 8Ti.125.404 – Ti.125.409 · Cat No. · Length (mm): 4 – 9Ti.125.504 – Ti.125.509 · Cat No. · Length (mm): 4 – 9

Ti.850.101 · Cat No. · Thickness: 0.6mm · Holes: 4 · Length: 14 mm

Cantidad solicitadaConsultar esta selección ↗Continúa con tu institución y destino. Esta selección no reserva inventario.

Fotografías y tablas técnicas

Se conserva la denominación, las unidades y los rangos publicados por el fabricante.

CMF – Locking X Plate1 / 23

CMF – Locking X Plate

Cat No.	Thickness	Holes	Length
Ti.850.101	0.6mm	4	14 mm

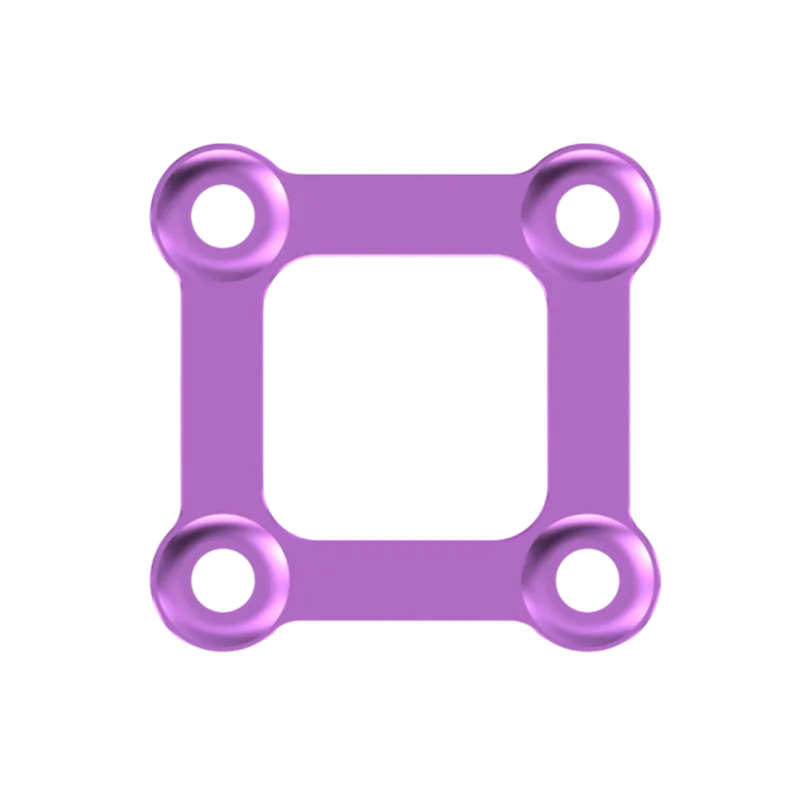

CMF – Locking Rectangular Plate2 / 23

CMF – Locking Rectangular Plate

Cat No.	Thickness	Holes	Length
Ti.850.102	0.6mm	4	14 mm

CMF – Locking Rectangular Plate3 / 23

CMF – Locking Rectangular Plate

Cat No.	Thickness	Holes	Length
Ti.850.103	0.6mm	4	20 mm

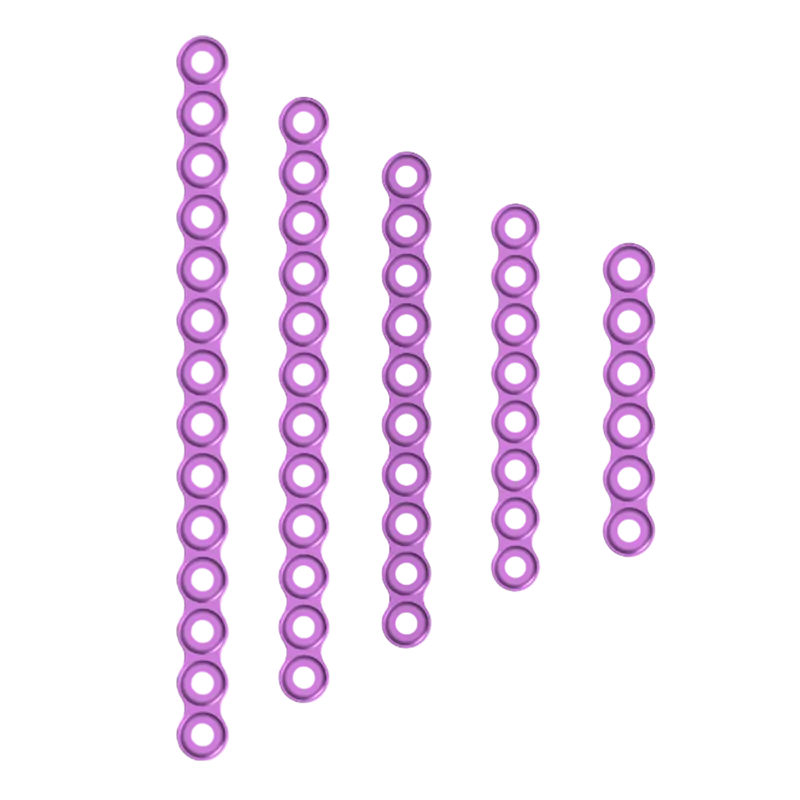

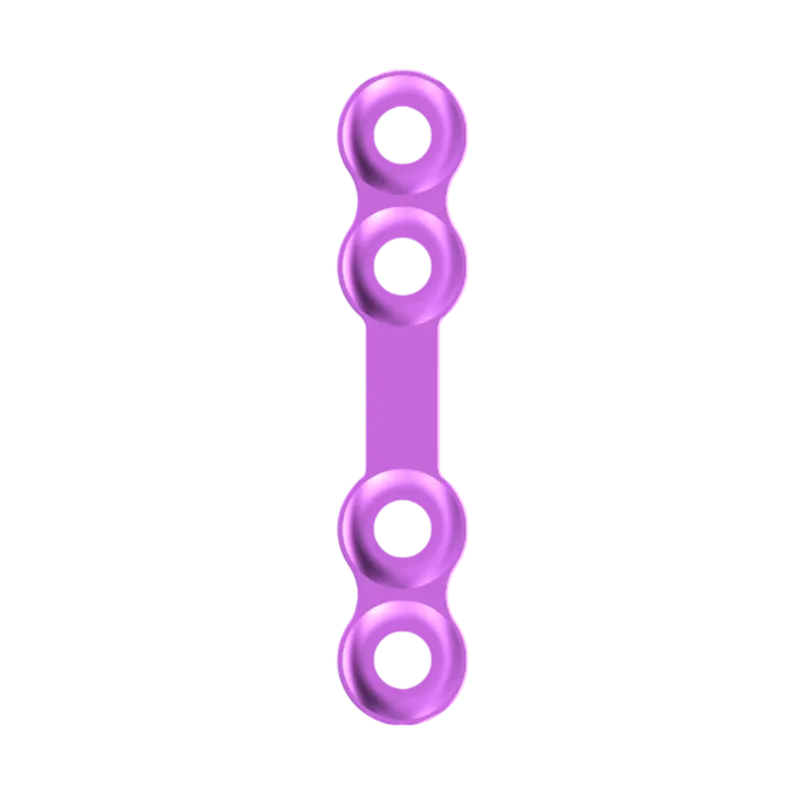

CMF – Locking Straight Bridge Plate4 / 23

CMF – Locking Straight Bridge Plate

Cat No.	Thickness	Holes	Length (mm)
Ti.850.110 – Ti.850.114	0.6mm	6 – 14	24 – 56

CMF – Locking Arc Plate5 / 23

CMF – Locking Arc Plate

Cat No.	Thickness	Holes	Length (mm)
Ti.850.120 – Ti.850.124	0.6mm	6 – 14	24 – 49

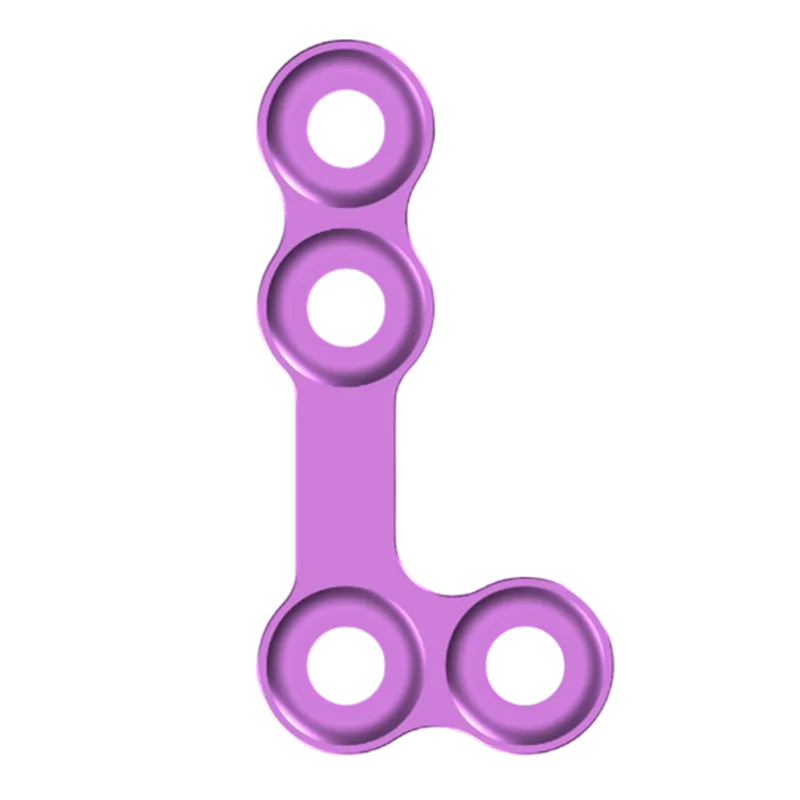

CMF – Locking L-Plate 90°6 / 23

CMF – Locking L-Plate 90°

Cat No.	Thickness	Holes	Length
Ti.850.130	0.6mm	4	16 mm

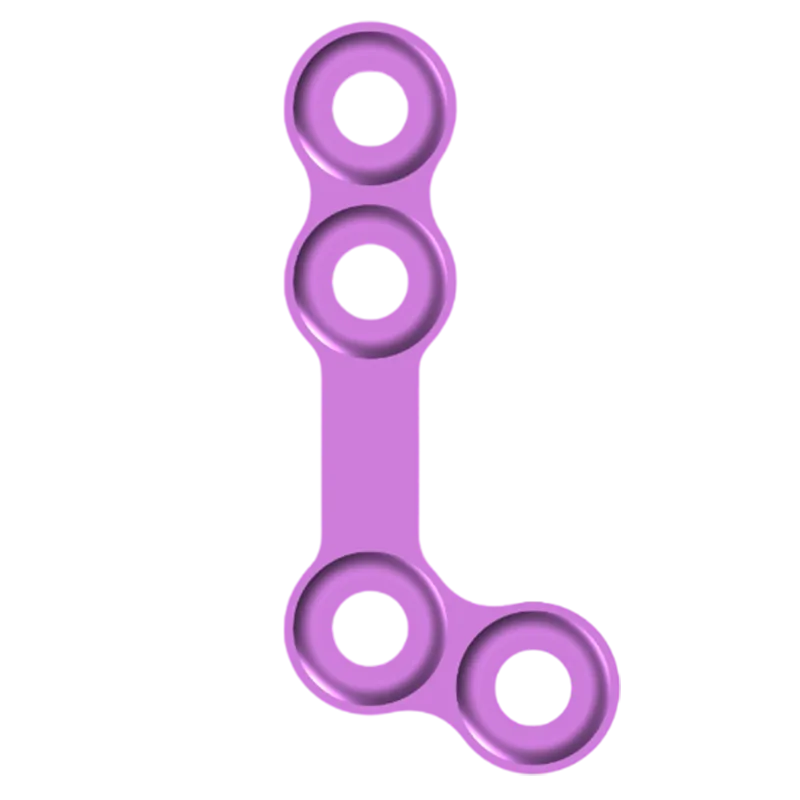

CMF – Locking L-Plate 110°7 / 23

CMF – Locking L-Plate 110°

Cat No.	Thickness	Holes	Length
Ti.850.135	0.6mm	4	16 mm

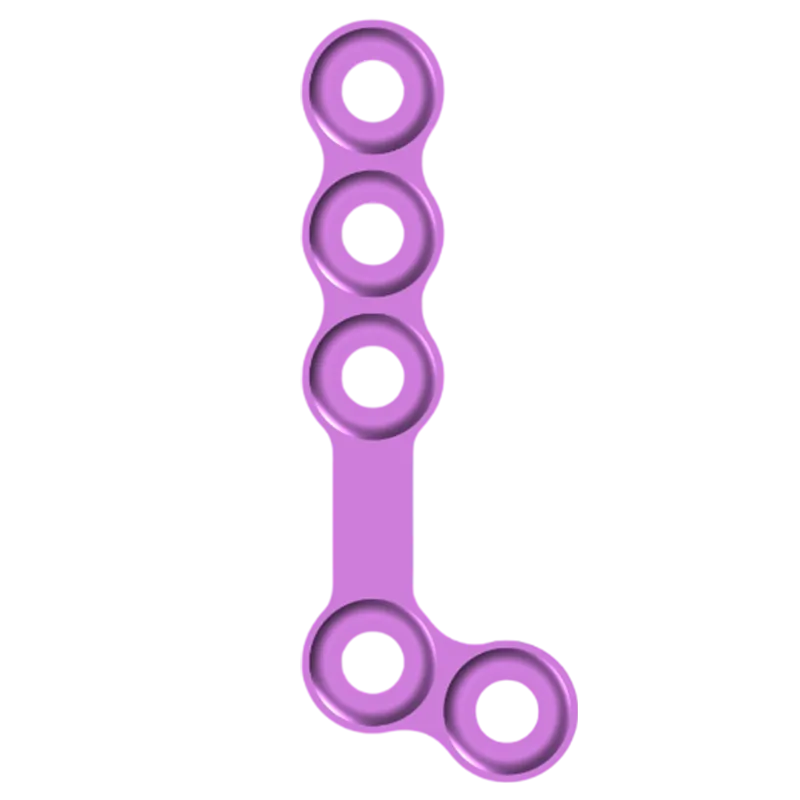

CMF – Locking L-Plate 110°8 / 23

CMF – Locking L-Plate 110°

Cat No.	Thickness	Holes	Length
Ti.850.136	0.6mm	5	20 mm

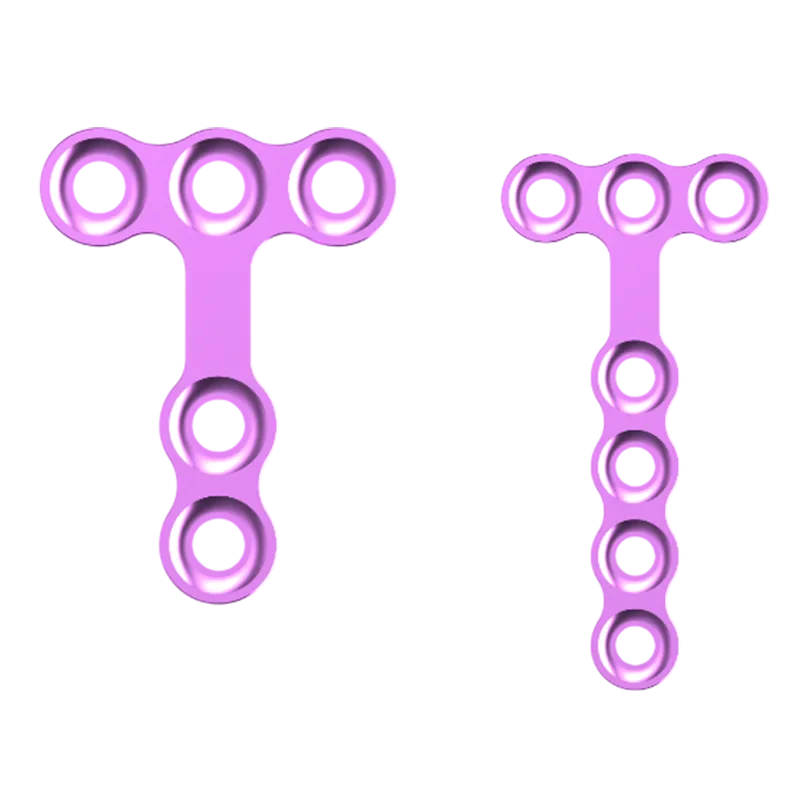

CMF – Locking T- Plate9 / 23

CMF – Locking T- Plate

Cat No.	Thickness	Holes	Length
Ti.850.140	0.6mm	5	16 mm
Ti.850.141	0.6mm	7	24 mm

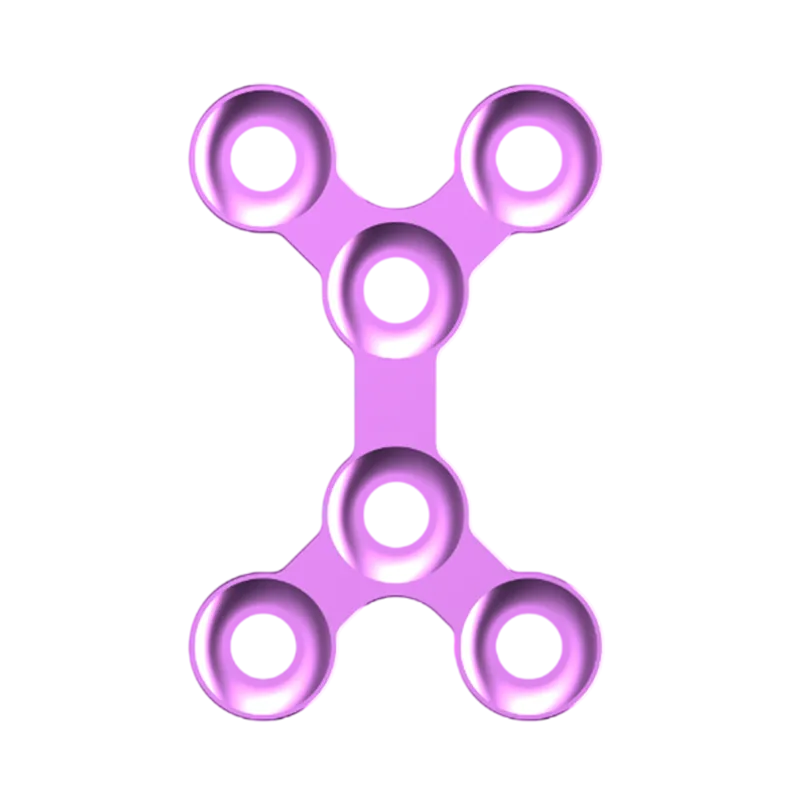

CMF – Locking Double Y- Plate10 / 23

CMF – Locking Double Y- Plate

Cat No.	Thickness	Holes	Length
Ti.850.145	0.6mm	6	17 mm

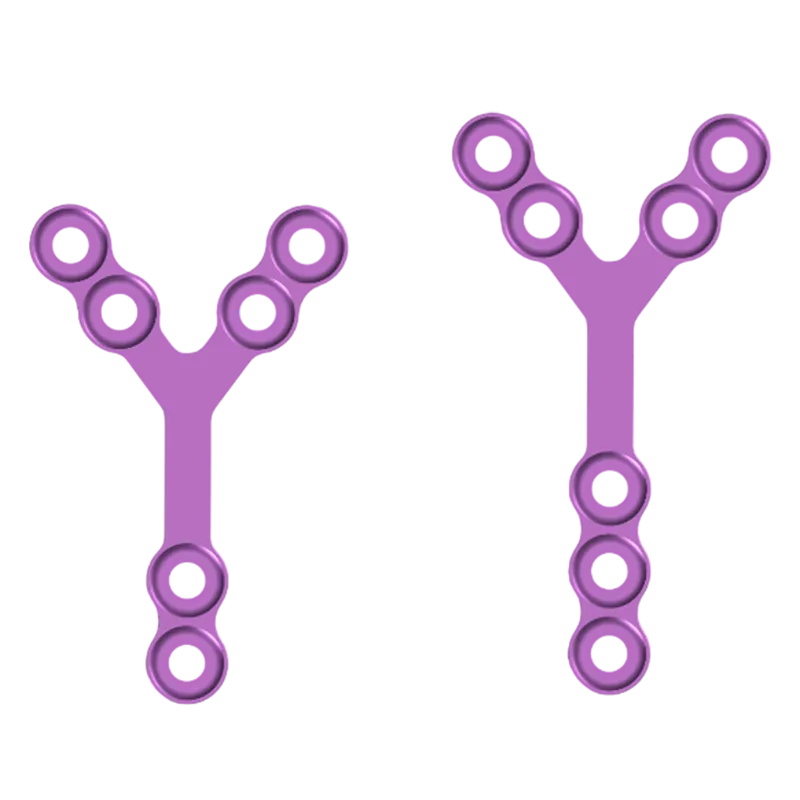

CMF – Locking Y- Plate11 / 23

CMF – Locking Y- Plate

Cat No.	Thickness	Holes	Length
Ti.850.150	0.6mm	6	24 mm
Ti.850.151	0.6mm	7	28 mm

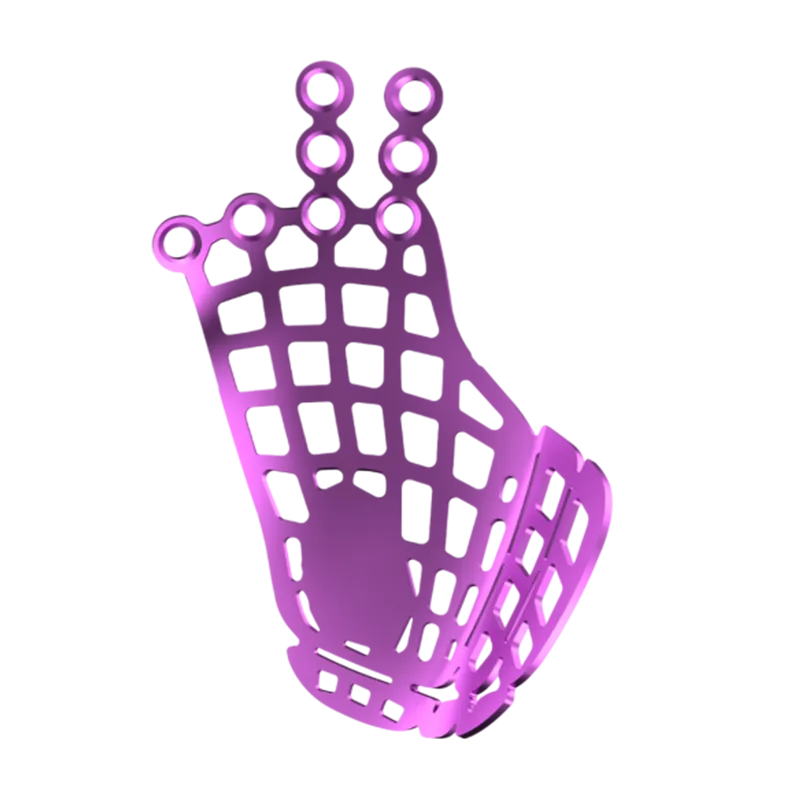

CMF – Preformed Orbital Plate12 / 23

CMF – Preformed Orbital Plate

Cat No.	Product Name
Ti.850.160	CMF – Preformed Orbital Plate – Small – Left

CMF – Preformed Orbital Plate13 / 23

CMF – Preformed Orbital Plate

Cat No.	Product Name
Ti.850.165	CMF – Preformed Orbital Plate – Small – Right

CMF – Preformed Orbital Plate14 / 23

CMF – Preformed Orbital Plate

Cat No.	Product Name
Ti.850.170	CMF – Preformed Orbital Plate – Large – Left

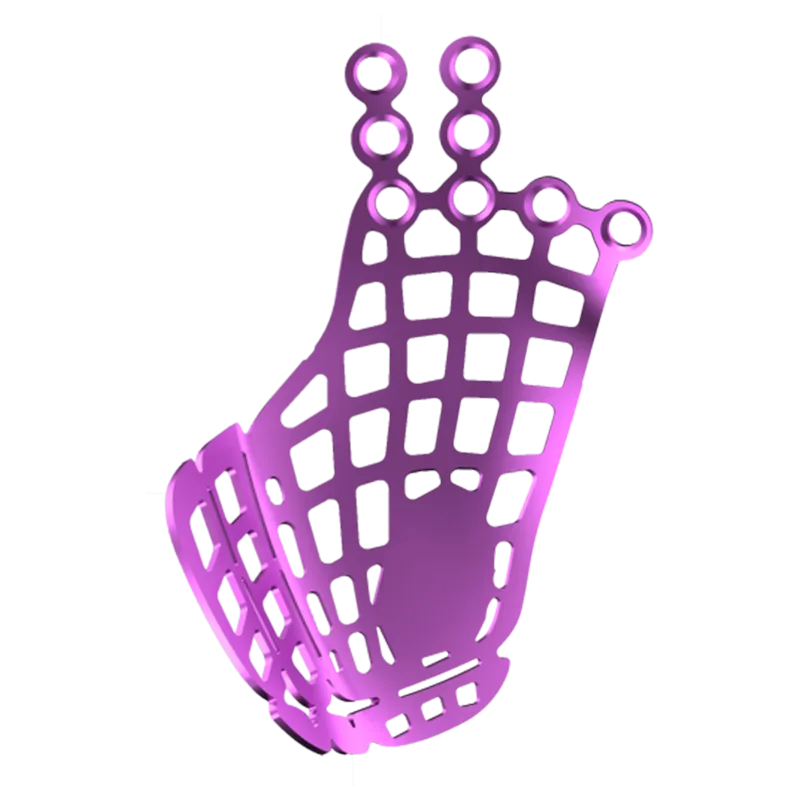

CMF – Preformed Orbital Plate15 / 23

CMF – Preformed Orbital Plate

Cat No.	Product Name
Ti.850.175	CMF – Preformed Orbital Plate – Large – Right

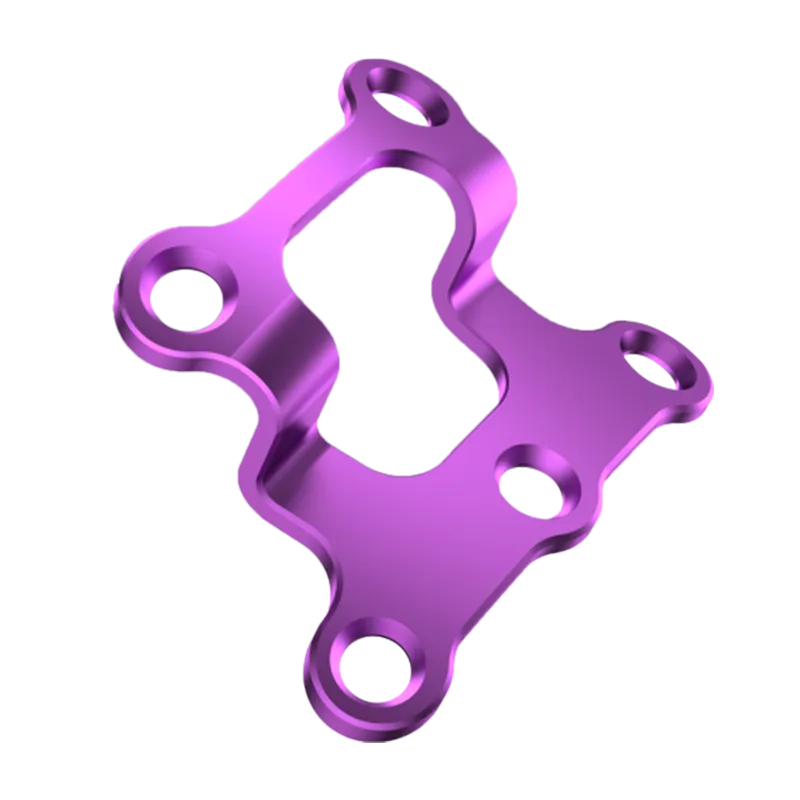

Genioplasty Plate CMF16 / 23

Genioplasty Plate CMF

Cat No.	Thickness	Holes	Length (mm)
Ti.850.181 – Ti.850.183	0.8mm	5	6 – 10

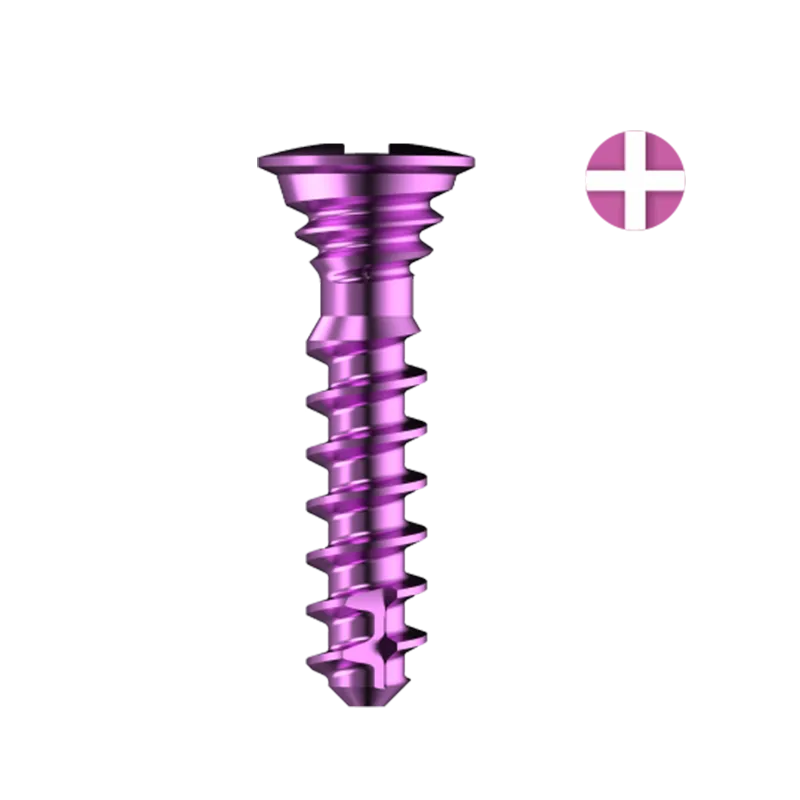

CMF – Cross Drive LOCKING Screw – Self Tapping – 1.5 mm Dia17 / 23

CMF – Cross Drive LOCKING Screw – Self Tapping – 1.5 mm Dia

Cat No.	Length (mm)
Ti.125.104 – Ti.125.108	4 – 8

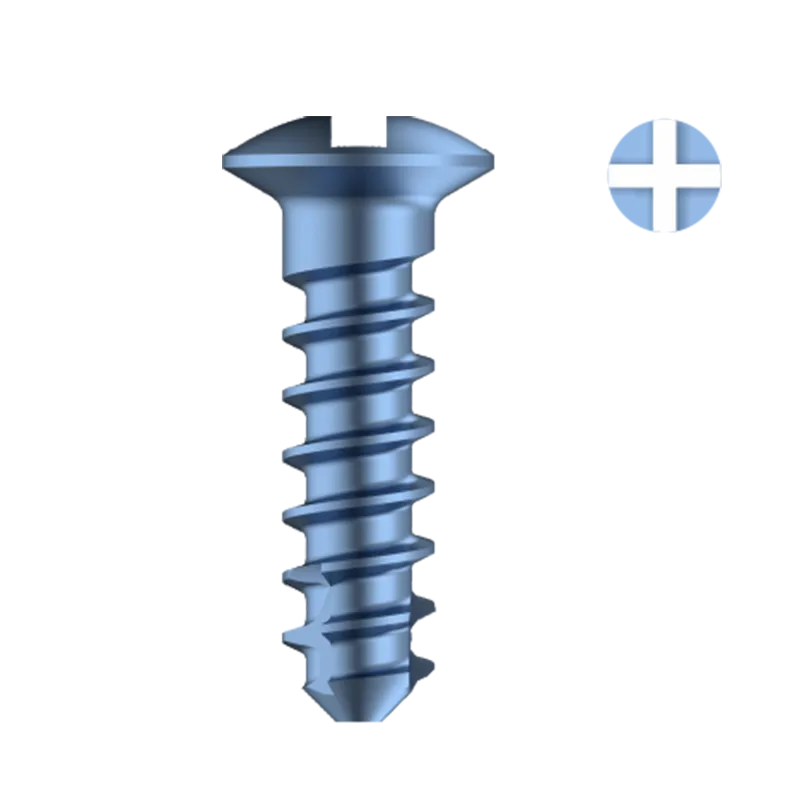

CMF – Cross Drive NON Locking Screw – Self Tapping – 1.5 mm Dia18 / 23

CMF – Cross Drive NON Locking Screw – Self Tapping – 1.5 mm Dia

Cat No.	Length (mm)
Ti.125.204 – Ti.125.208	4 – 8

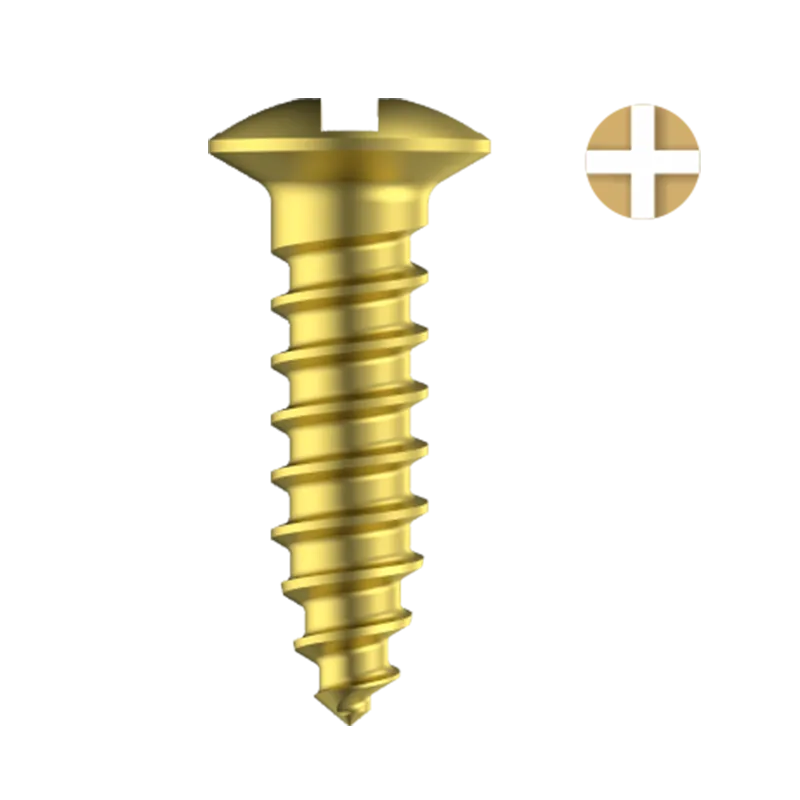

CMF – Cross Drive NON Locking Screw – Self Drilling – 1.5 mm Dia19 / 23

CMF – Cross Drive NON Locking Screw – Self Drilling – 1.5 mm Dia

Cat No.	Length (mm)
Ti.125.304 – Ti.125.308	4 – 8

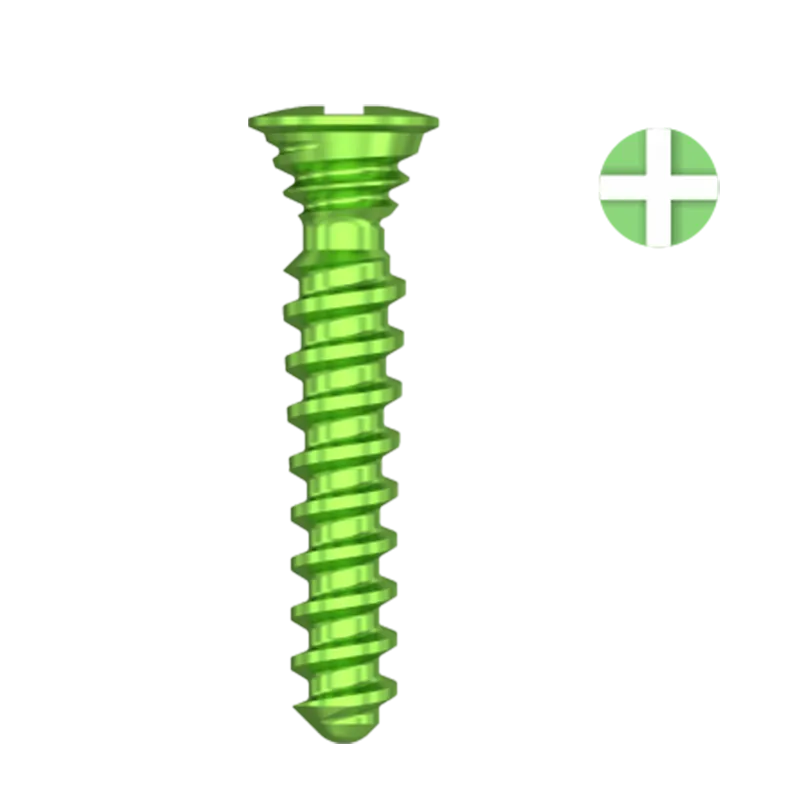

CMF – Locking EMERGENCY Screw – 1.7 mm Dia20 / 23

CMF – Locking EMERGENCY Screw – 1.7 mm Dia

Cat No.	Length (mm)
Ti.125.404 – Ti.125.409	4 – 9

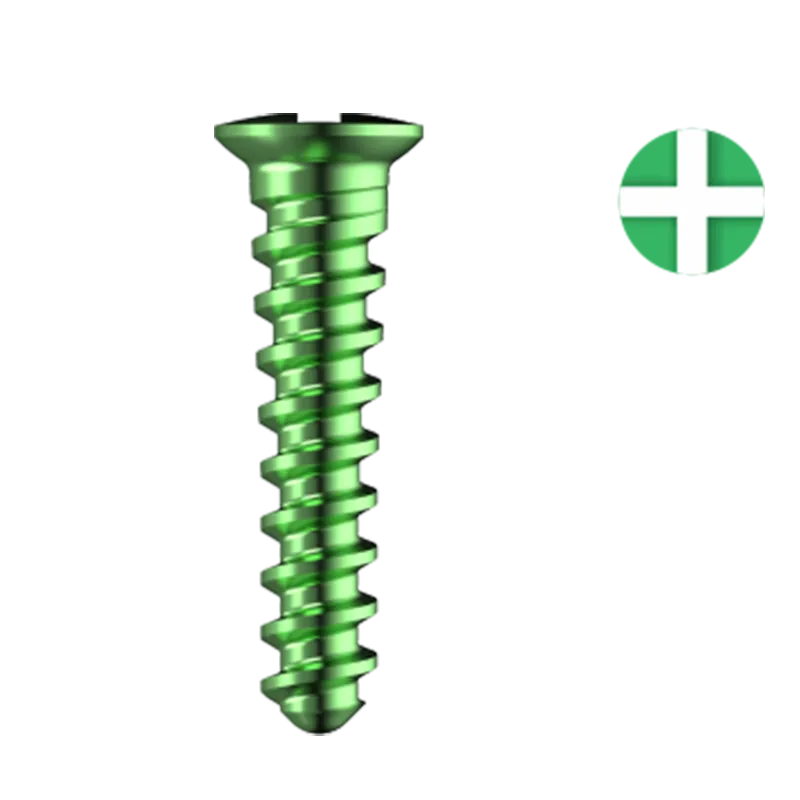

CMF – NON – Locking EMERGENCY Screw – 1.7 mm Dia21 / 23

CMF – NON – Locking EMERGENCY Screw – 1.7 mm Dia

Cat No.	Length (mm)
Ti.125.504 – Ti.125.509	4 – 9

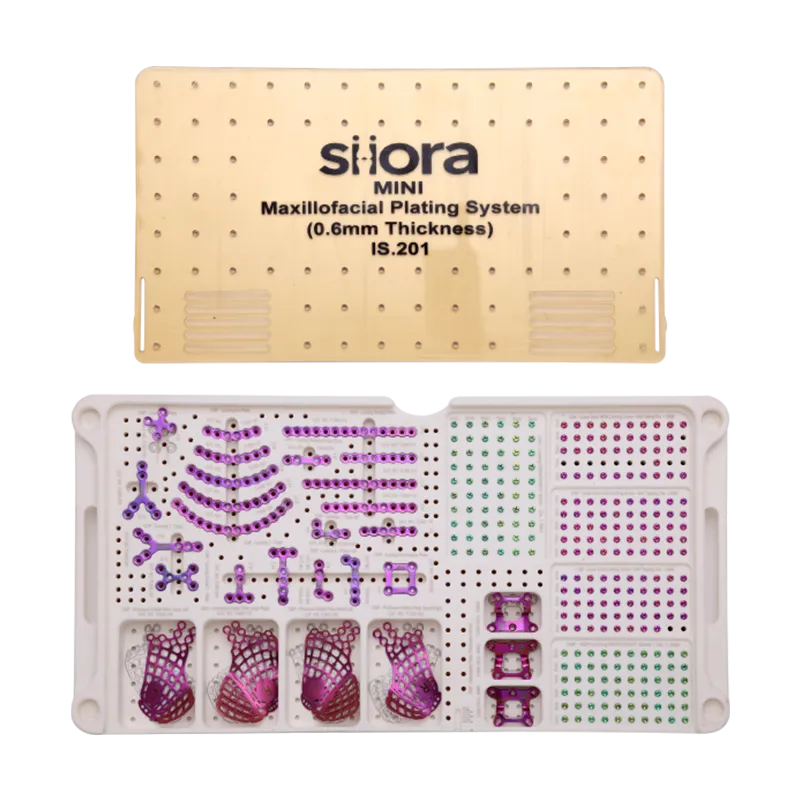

Mini Maxillofacial Plate (0.6mm Thickness) 1.5mm Screws System22 / 23

Mini Maxillofacial Plate (0.6mm Thickness) 1.5mm Screws System

Cat. No. IS.201	Mini Maxillofacial Plate (0.6mm Thickness) 1.5mm Screws System	Units
Ti.850.101	CMF – Locking X – Plate (Thickness 0.6MM) 4 Holes Length 14MM -Titanium	1
Ti.850.102	CMF – Locking Rectangular Plate (Thickness 0.6MM) 4 Holes Length 14MM -Titanium	1
Ti.850.103	CMF – Locking Straight Bridge Plate (Thickness 0.6MM) 4 Holes Length 20MM -Titanium	1
Ti.850.110	CMF – Locking Straight Plate (Thickness 0.6MM) 6 Holes Length 24MM -Titanium	1
Ti.850.111	CMF – Locking Straight Plate (Thickness 0.6MM) 8 Holes Length 32MM -Titanium	1
Ti.850.112	CMF – Locking Straight Plate (Thickness 0.6MM) 10 Holes Length 40MM -Titanium	1
Ti.850.113	CMF – Locking Straight Plate (Thickness 0.6MM) 12 Holes Length 48MM -Titanium	1
Ti.850.114	CMF – Locking Straight Plate (Thickness 0.6MM) 14 Holes Length 56MM -Titanium	1
Ti.850.120	CMF – Locking Arc Plate (Thickness 0.6MM) 6 Holes Length 24MM -Titanium	1
Ti.850.121	CMF – Locking Arc Plate (Thickness 0.6MM) 8 Holes Length 31MM -Titanium	1
Ti.850.122	CMF – Locking Arc Plate (Thickness 0.6MM) 10 Holes Length 38MM -Titanium	1
Ti.850.123	CMF – Locking Arc Plate (Thickness 0.6MM) 12 Holes Length 44MM -Titanium	1
Ti.850.124	CMF – Locking Arc Plate (Thickness 0.6MM) 14 Holes Length 49MM -Titanium	1
Ti.850.130	CMF – Locking L-Plate 90°Deg. (Thickness 0.6MM) 4 Holes Length 16MM -Titanium	1
Ti.850.135	CMF – Locking L-Plate 110°Deg. (Thickness 0.6MM) 4 Holes Length 16MM -Titanium	1
Ti.850.136	CMF – Locking L-Plate 110°Deg. (Thickness 0.6MM) 5 Holes Length 20MM -Titanium	1
Ti.850.140	CMF – Locking T- Plate (Thickness 0.6MM) 5 Holes Length 16MM -Titanium	1
Ti.850.141	CMF – Locking T- Plate (Thickness 0.6MM) 7 Holes Length 24MM -Titanium	1
Ti.850.145	CMF – Locking Double Y- Plate (Thickness 0.6MM) 6 Holes Length 17MM -Titanium	1
Ti.850.150	CMF – Locking Y- Plate (Thickness 0.6MM) 6 Holes Length 24MM -Titanium	1
Ti.850.151	CMF – Locking Y- Plate (Thickness 0.6MM) 7 Holes Length 28MM -Titanium	1
Ti.850.160	CMF – Preformed Orbital Plate (Thickness 0.6MM) – Small – Left -Titanium	1
Ti.850.165	CMF – Preformed Orbital Plate (Thickness 0.6MM) – Small – Right -Titanium	1
Ti.850.170	CMF – Preformed Orbital Plate (Thickness 0.6MM) – Large – Left -Titanium	1
Ti.850.175	CMF – Preformed Orbital Plate (Thickness 0.6MM) – Large – Right -Titanium	1
Ti.850.181	CMF – Genioplasty Plate (Thickness 0.8MM) 5 Holes Length 6MM -Titanium	1
Ti.850.182	CMF – Genioplasty Plate (Thickness 0.8MM) 5 Holes Length 8MM -Titanium	1
Ti.850.183	CMF – Genioplasty Plate (Thickness 0.8MM) 5 Holes Length 10MM -Titanium	1
Ti.125.104	CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 4mm -Titanium	10
Ti.125.105	CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 5mm -Titanium	10
Ti.125.106	CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 6mm -Titanium	10
Ti.125.107	CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 7mm -Titanium	10
Ti.125.108	CMF – Cross Drive LOCKING Screw – Self Tapping – Dia 1.5mm Length 8mm -Titanium	10
Ti.125.204	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 4mm -Titanium	10
Ti.125.205	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 5mm -Titanium	10
Ti.125.206	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 6mm -Titanium	10
Ti.125.207	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 7mm -Titanium	10
Ti.125.208	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 8mm -Titanium	10
Ti.125.304	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 4mm -Titanium	10
Ti.125.305	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 5mm -Titanium	10
Ti.125.306	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 6mm -Titanium	10
Ti.125.307	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 7mm -Titanium	10
Ti.125.308	CMF – Cross Drive NON LOCKING Screw – Self Tapping – Dia 1.5mm Length 8mm -Titanium	10
Ti.125.404	CMF – Locking EMERGENCY Screw – Dia 1.7mm Length 4mm -Titanium	10
Ti.125.405	CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 5mm -Titanium	10
Ti.125.406	CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 6mm -Titanium	10
Ti.125.407	CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 7mm -Titanium	10
Ti.125.408	CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 8mm -Titanium	10
Ti.125.409	CMF – Locking EMERGENCY Screw -Dia 1.7mm Length 9mm -Titanium	10
Ti.125.504	CMF – NON Locking EMERGENCY Screw – Dia 1.7mm Length 4mm -Titanium	10
Ti.125.505	CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 5mm -Titanium	10
Ti.125.506	CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 6mm -Titanium	10
Ti.125.507	CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 7mm -Titanium	10
Ti.125.508	CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 8mm -Titanium	10
Ti.125.509	CMF – NON Locking EMERGENCY Screw -Dia 1.7mm Length 9mm -Titanium	10
400.171	Implant Box for Mini ( Maxillofacial 0.6mm Thickness) 1.5mm Screws System (Medical Grade Plastic)	1

CMF Instrument Set23 / 23

CMF Instrument Set

Cat No. IS.208	Description	Units
XP.916.101	CMF Straight Quick Coupling Handle	1
XP.916.102	CMF Cross Drive Screw Driver Shaft	1
XP.916.103	CMF Surgical Elevator 1.5mm Dia.	1
XP.916.104	CMF Drill Bit – Plain Shank Dia. 1.1mm X 8.5mm X 48mm Long	1
XP.916.105	CMF Drill Bit – Plain Shank Dia. 1.6mm X 12mm X 48mm Long	1
XP.916.106	CMF Drill Bit – Plain Shank Dia. 1.9mm X 22mm X 58mm Long	1
XP.916.107	CMF Drill Bit – Plain Shank Dia. 1.9mm X 57mm X 82mm Long	1
XP.916.108	CMF Temporary Holder HC 2.4mm	2
XP.916.109	CMF Universal Drill Guide 1.1/1.6mm	1
XP.916.110	CMF Universal Drill Guide 1.6/1.9mm	1
XP.916.111	CMF Depth Gauge	1
916.120	CMF Locking Drill Sleeve 1.9mm	2
916.121	CMF Plate Holding Forceps	1
400.177	Instrument Box for Maxillofacial Plating System (Medical Grade Plastic)	1

Las fotografías y los datos corresponden al catálogo de Siora. Disponibilidad, documentación sanitaria, precio y condiciones de suministro se confirman con Kallos para cada destino. Los rangos no se descomponen en referencias individuales.
