Clavo femoral retrógrado RIGIFIX
Multilock Retrograde Femoral Nail System (Short & Long)
Fabricante: Siora Surgicals Pvt. Ltd.
Fuente consultada: 2026-09-20 · Ver página original ↗
Fotografías y tablas técnicas
Se conserva la denominación, las unidades y los rangos publicados por el fabricante.
Rigifix™ Multilock Retrograde Femoral Nail – Short1 / 8
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
|---|---|---|
| Ti.090.09.180 – Ti.090.13.180 | 9 – 13 | 180 |

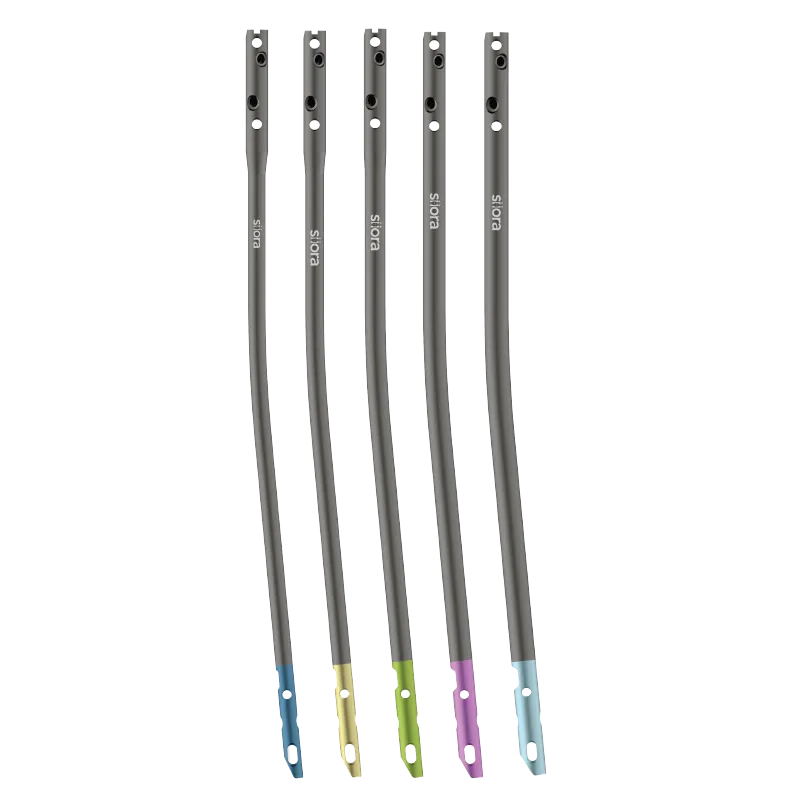

Rigifix™ Multilock Retrograde Femoral Nail – Long2 / 8
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
|---|---|---|
| Ti.090.09.300 – Ti.090.09.400 | 9.0 | 300 – 400 |
| Ti.090.10.300 – Ti.090.10.400 | 10.0 | 300 – 400 |
| Ti.090.11.300 – Ti.090.11.400 | 11.0 | 300 – 400 |
| Ti.090.12.300 – Ti.090.12.400 | 12.0 | 300 – 400 |
| Ti.090.13.300 – Ti.090.13.400 | 13.0 | 300 – 400 |

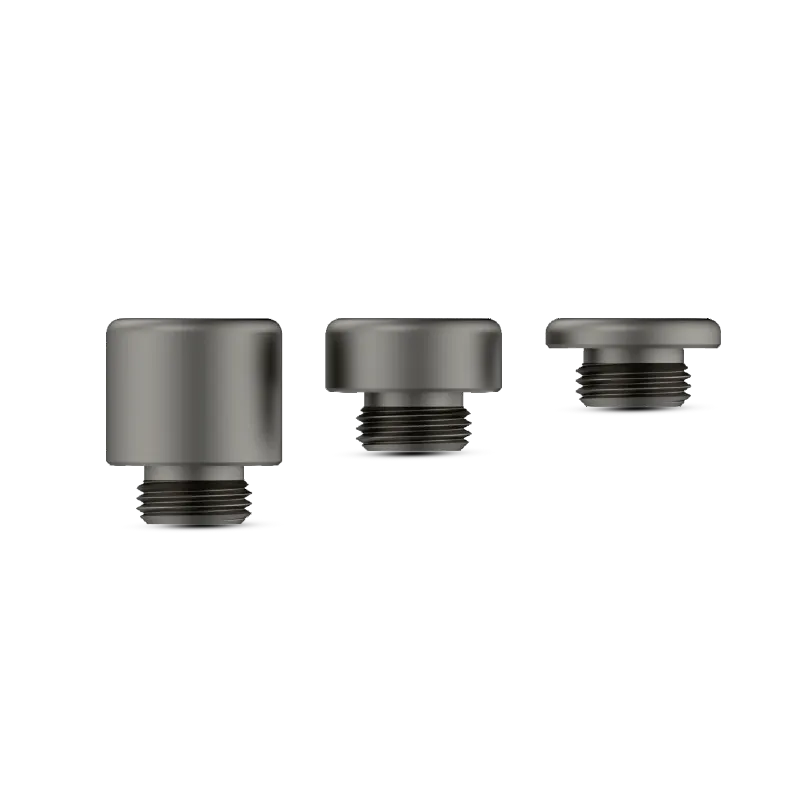

End Cap for Multilock Retrograde Femoral Nail – Titanium3 / 8
| Cat No. (Titanium) | Height (mm) |
|---|---|
| Ti.090.100 – Ti.090.110 | 0 – 10 |

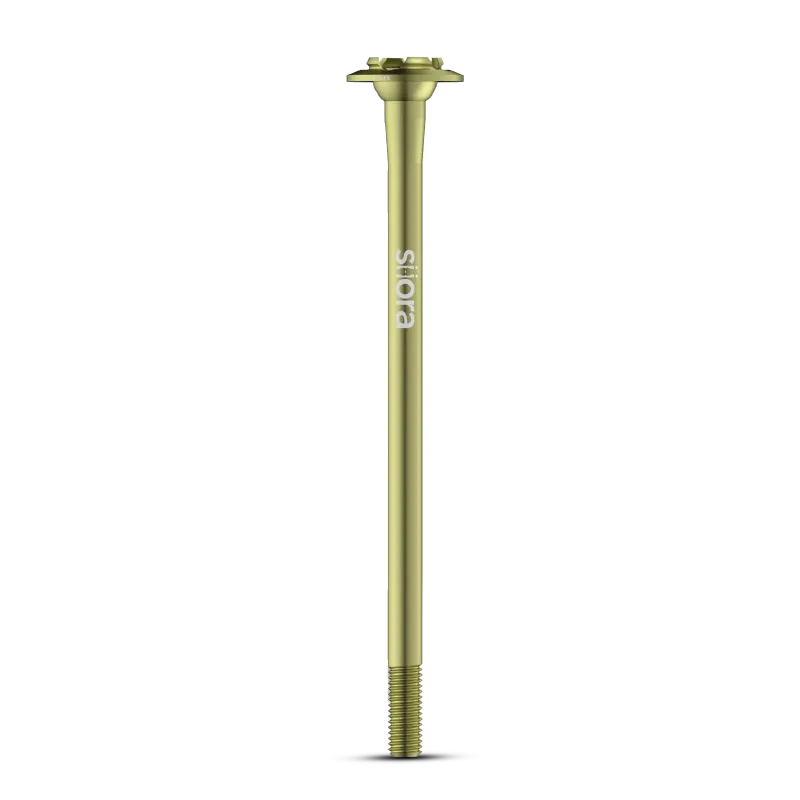

MRFN Condyler Screw – Titanium4 / 8
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
|---|---|---|
| Ti.089.040 – Ti.089.120 | 5.0 | 40 – 120 |

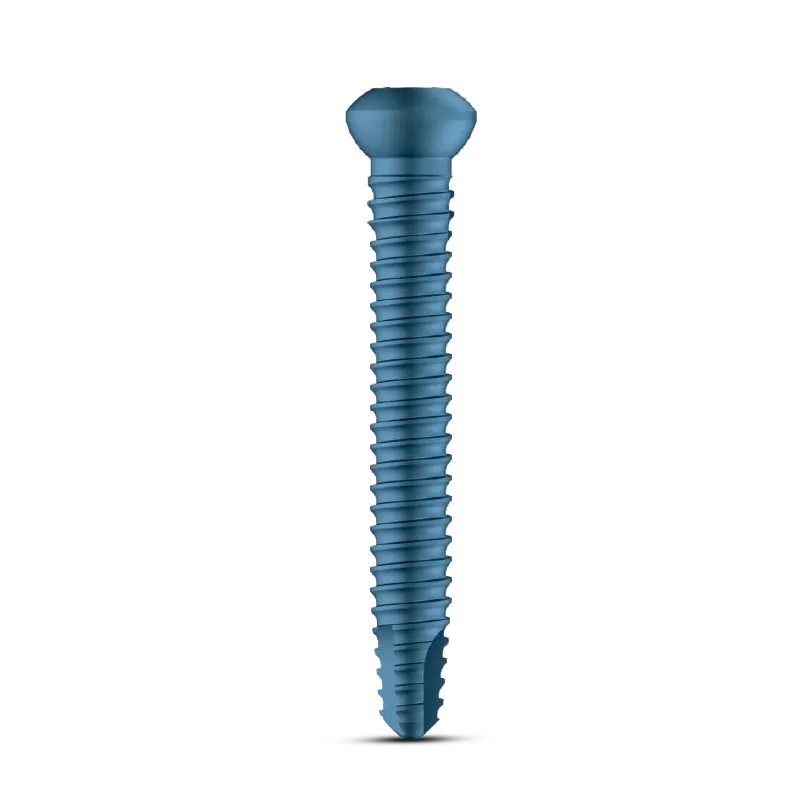

MRFN Locking Screw – Titanium5 / 8
| Cat No. (Titanium) | Dia (mm) | Length (mm) |
|---|---|---|
| Ti.089.230 – Ti.089.300 | 5.0 | 30 – 100 |

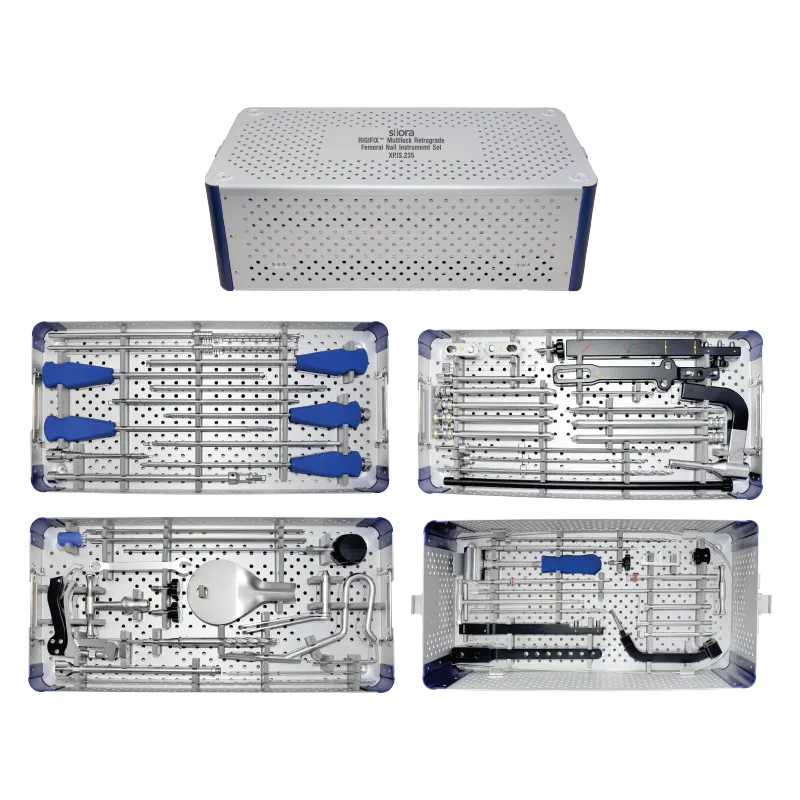

RIGIFIX™ Multilock Retrograde Femoral Nail Instrument Set6 / 8
| Cat. No. XP.IS.235 | Description | QTY |
|---|---|---|
| XP.926.101 | Jig Handle for MRFN Nail | 1 |
| XP.926.102 | Proximal Aiming Device for MRFN Nail | 1 |
| XP.926.103 | Proximal cum Distal Aiming Device for MRFN Short Nails | 1 |
| XP.926.104 | Location Block for Short Nail , Left | 1 |
| XP.926.105 | Location Block for Short Nail, Right | 1 |
| XP.926.106 | Distal Aiming Device for Long Nails (Part A) | 1 |
| XP.926.107 | Distal Aiming Device for Long Nails (Part B) | 1 |
| XP.926.108 | A P Hole Attachment for MRFN Nail | 1 |
| XP.926.109 | Knob, for Attachment | 5 |
| XP.926.110 | Conical Bolt for MRFN Nail | 2 |
| XP.926.111 | Protection Sleeve Dia. 11.0/9.5mm, Length 155mm | 2 |
| XP.926.112 | Drill Sleeve Dia. 9.5/5.0mm, Length 165mm | 2 |
| XP.926.113 | Trocar Pointer Dia. 4.3mm, Length 180mm | 2 |
| XP.926.114 | Protection Sleeve Dia. 10.0/8.0mm, Length 155mm | 2 |
| XP.926.115 | Drill Sleeve Dia. 8.0/4.3mm, Length 170mm | 2 |
| XP.926.116 | Trocar Pointer Dia. 4.3mm, Length 185mm | 2 |
| XP.926.117 | Protection Sleeve Dia. 11.0/8.0mm, Length 200mm | 2 |
| XP.926.118 | Drill Sleeve Dia. 8.0/4.3mm, Length 215mm | 2 |
| XP.926.119 | Trocar Pointer Dia. 4.3mm, Length 225mm | 2 |
| XP.926.120 | Protection Sleeve Flat Cut 10.0 X 8.0 X 120mm | 1 |
| XP.926.121 | Positioning Drill Sleeve Dia. 8.0/5.0mm X 140mm Length | 1 |
| XP.926.122 | Trocar Pointer Dia. 5.0mm, Length 135mm | 1 |
| XP.926.123 | T- Handle Pusher for MRFN Nail | 1 |
| XP.926.124 | Pusher Block for MRFN Nail | 1 |
| XP.926.125 | Drill Bit Plain Shank – Dia. 4.2mm X 300mm Long | 1 |
| XP.926.126 | Drill Bit Plain Shank – Dia. 4.2mm X 350mm Long | 1 |
| XP.926.127 | Drill Bit Plain Shank – Dia. 4.3mm X 350mm Long | 2 |
| XP.926.128 | Drill Bit Plain Shank – Dia. 5.0mm X 250mm Long | 1 |
| XP.926.129 | Drill Bit Plain Shank – Dia. 5.0mm X 320mm Long | 2 |
| XP.926.130 | Drill Bit with T- Handle – Dia. 5.0mm X 220mm Long | 1 |
| XP.926.131 | Guide Wire Plain with Trocar Dia. 1.8mm X 200mm Length | 4 |
| XP.926.132 | Guide Wire Plain With Trocar Tip Dia. 3.2mm, Length 320mm | 3 |
| XP.926.133 | Threaded Guide Wire Dia. 3.2mm X 320mm Length | 3 |
| XP.926.134 | Proximal Entry Protection Sleeve | 1 |
| XP.926.135 | Proximal Entry Guide Wire Sleeve 3.2mm | 1 |
| XP.926.136 | Cannulated Proximal Entry Reamer 12.5mm for MRFN Nail | 1 |
| XP.926.137 | Quick Coupling T- Handle | 1 |
| XP.926.138 | Cannulated Awl | 1 |
| XP.926.139 | L- Wrench 3.0mm | 1 |
| XP.926.140 | Pin Wrench – 4.0mm | 1 |
| XP.926.141 | Combination Wrench – 11mm | 1 |
| XP.926.142 | Extraction Rod for MRFN Nail | 1 |
| XP.926.143 | Extraction Device for MRFN Nail | 1 |
| XP.926.144 | Impacting Device for MRFN Nail | 1 |
| XP.926.145 | Development Template for MRFN Nail | 1 |
| XP.926.146 | Tissue Protector | 1 |
| XP.926.147 | Graphic Measuring Scale for MRFN Nail | 1 |
| XP.926.148 | Guide Wire Gripper for MRFN Nail | 1 |
| XP.926.149 | Depth Gauge Curved Tip | 1 |
| XP.926.150 | Depth Gauge Straight Tip | 1 |
| XP.926.151 | Hexagonal Screw Driver Shaft – 6.5mm Tip | 1 |
| XP.926.152 | Star Screw Driver with Connecting Shaft – T30 | 1 |
| XP.926.153 | Star Screw Driver with Connecting Shaft – T25 | 1 |
| XP.926.154 | Self Picking Star Drive Screw Driver – T25 | 1 |
| XP.926.155 | Cannulated Hexagonal Screw Driver – 6.5mm Tip | 2 |
| XP.926.156 | Star Drive Screw Driver Shaft – T25 | 1 |
| XP.926.157 | Star Drive Screw Driver Shaft – T30 | 1 |
| XP.926.158 | Sliding Hammer | 1 |
| XP.926.159 | Quick Coupling Cannulated Countersink Dia. 6.0mm | 1 |
| XP.926.160 | T- Handle for Medullary Canal | 1 |
| XP.926.161 | Blocker | 1 |
| XP.926.162 | Locking Nut | 1 |
| XP.926.163 | Positioning Hole Reamer | 1 |
| XP.926.164 | Adjusting Screw Trocar | 1 |
| XP.926.165 | Positioning Sleeve | 1 |
| XP.926.166 | Case with Pins | 3 |
| XP.926.167 | Guide Wire with Ball Tip Dia. 2.5 mm X Length 1000 mm | 1 |
| XP.400.245 | Graphic Aluminium Instrument Box for Multilock Retrograde Femoral Nail | 1 |
Flexible Reamer Set Fixed Head7 / 8
| Cat No. IS.039 | Description | Units |
|---|---|---|
| XP.712.280 | Flexible Reamer Shaft Fixed Head 8.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.285 | Flexible Reamer Shaft Fixed Head 8.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.290 | Flexible Reamer Shaft Fixed Head 9.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.295 | Flexible Reamer Shaft Fixed Head 9.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.300 | Flexible Reamer Shaft Fixed Head 10.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.305 | Flexible Reamer Shaft Fixed Head 10.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.310 | Flexible Reamer Shaft Fixed Head 11.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.315 | Flexible Reamer Shaft Fixed Head 11.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.320 | Flexible Reamer Shaft Fixed Head 12.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.325 | Flexible Reamer Shaft Fixed Head 12.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.330 | Flexible Reamer Shaft Fixed Head 13.0 MM Dia-Stainless Steel 17-4-PH | 1 |
| XP.712.335 | Flexible Reamer Shaft Fixed Head 13.5 MM Dia-Stainless Steel 17-4-PH | 1 |
| 400.083 | Graphic Aluminum Box For Fixed Head Flexible Reamer | 1 |
Flexible Reamer Set Detachable Head8 / 8
| Cat No. XP. IS.176 | Description | Units |
|---|---|---|
| XP.712.001 | Guide Wire With Stopper Size : 2.5mm Dia. X 100cm Length | 1 |
| XP.712.010 | Flexible Reamer Shaft for Detachable Head | 2 |
| XP.712.013 | Detachable Reamer Head 7.5mm | 1 |
| XP.712.014 | Detachable Reamer Head 8.0mm | 1 |
| XP.712.015 | Detachable Reamer Head 8.5mm | 1 |
| XP.712.016 | Detachable Reamer Head 9.0mm | 1 |
| XP.712.017 | Detachable Reamer Head 9.5mm | 1 |
| XP.712.018 | Detachable Reamer Head 10.0mm | 1 |
| XP.712.019 | Detachable Reamer Head 10.5mm | 1 |
| XP.712.020 | Detachable Reamer Head 11.0mm | 1 |
| XP.712.021 | Detachable Reamer Head 11.5mm | 1 |
| XP.712.022 | Detachable Reamer Head 12.0mm | 1 |
| XP.712.023 | Detachable Reamer Head 12.5mm | 1 |
| XP.712.024 | Detachable Reamer Head 13.0mm | 1 |
| XP.400.157 | Aluminium Sterilization Box for Flexible Reamers Shaft & Detachable Heads | 1 |
Las fotografías y los datos corresponden al catálogo de Siora. Disponibilidad, documentación sanitaria, precio y condiciones de suministro se confirman con Kallos para cada destino. Los rangos no se descomponen en referencias individuales.
